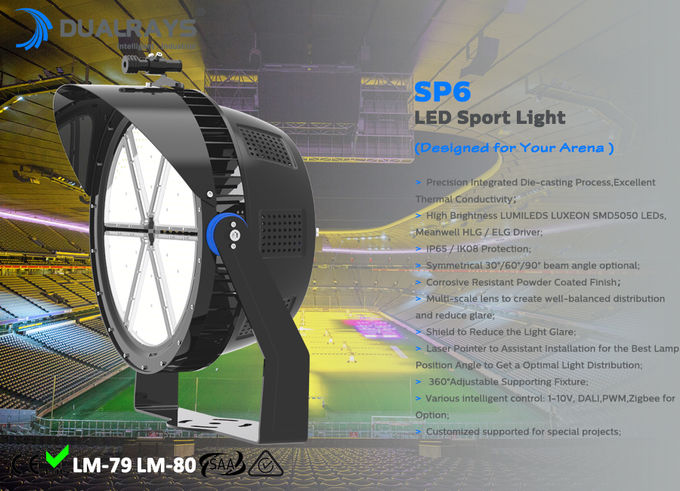

800W Dualrays LED Sports Light With 7 Years Warranty And SMD5050

> Precision Integrated Die-casting Process,Excellent Thermal Conductivity?
> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK08 Protection;
> Symmetrical 30°/60°/90° beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> 360°Adjustable Supporting Fixture;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90° beam angle optional;

> Aiming Device: Laser Pointer;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610*510*250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610*510*250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890*710*275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890*710*275	28.8	1PCS/CTN
