    140lpw 150w HB4.5 High Bay Light According To CE Standard For Warehouses Supermarket And Other Applications

    Ask Lasest Price
    Brand Name : DUALRAYS(OEM available)
    Model Number : DR-HB150-XGXP
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Price : Please inquiry for updated price
    Payment Terms : L/C, T/T, Western Union, paypal
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    • Product Details
    • Company Profile

    140lpw 150w HB4.5 High Bay Light According To CE Standard For Warehouses Supermarket And Other Applications

    LED UFO high bay light 150W 140Lpw IP65 excellent heat dissipation



    Options:

    > Driver: DUALRAYS Non-isolated Driver;
    > Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
    > Reflector : PC reflector / Al reflector;
    > Lens : 60°/90° (with Pearl Lens)/120° (with Toughened Glass Cover) beam angle optional;

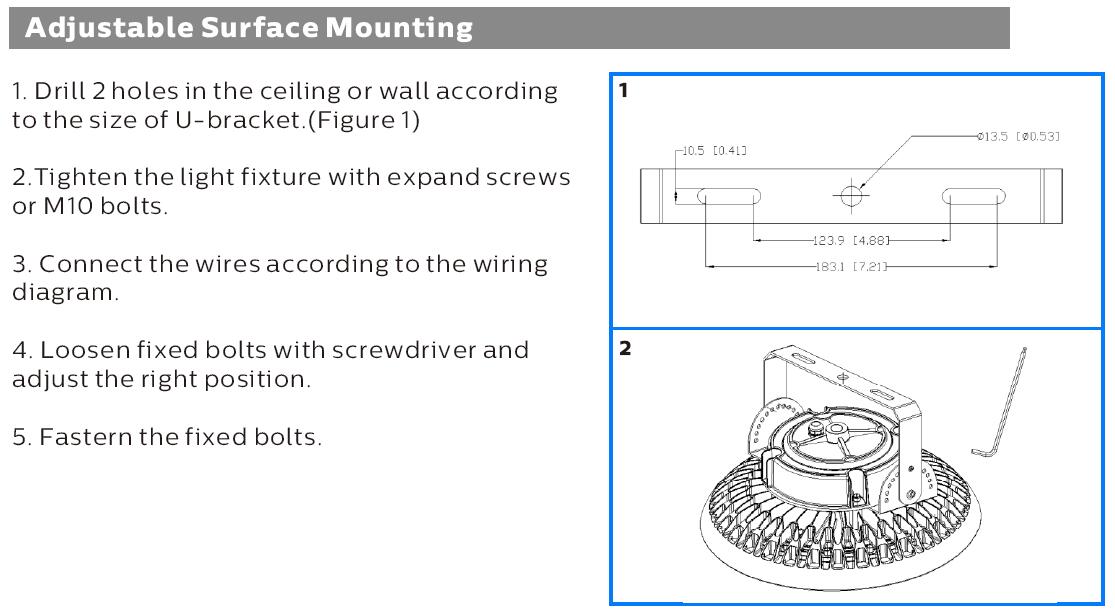

    > Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

    > Factories / Warehouses / Supermarket
    > Exhibitions / Showrooms / Animal Farm
    > Barns and Riding Halls / Logistic Center
    > High Rooms and Halls / Stadium / Chemical Plant
    > Traditional lamp replacement


    Model No.
    DR-HB100-XGXPDR-HB150-XGXPDR-HB200-XGXP
    System Watts/W
    100W150W200W
    System Efficiency/LPW
    140LPW
    Lumen Output/lm
    14.000±5%21.000±5%28.000±5%
    Rated Input Voltage/V
    AC100~277V, 50/60Hz
    LEDs Light Source
    SMD3030
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%
    Beam Angle(Optional)
    60°/90°/120°
    UGR
    <25
    Surge Protection
    3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED Driver
    DUALRAYS Own-developed High PF Non-isolated Driver
    IP Rating
    IP65
    Dimming(Optional)
    0/1-10V/Zigbee
    Sensor(Optional)
    Motion Sensor,Daylight Sensor
    Emergency(Optional)
    Available (30W @ 3Hrs for Standard)
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+PC (Toughened Glass Cover Optional)
    Lifespan/hrs
    60.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)
    Loop Hanging, Ceiling Mounting, Wall Mounting
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

    Character/Power
    100W
    150W
    200W
    240W
    A / mm
    Φ250
    Φ300
    Φ345
    Φ345
    B / mm
    178
    181
    183
    183







    DALI Device


    DALI Intelligent Control Diagram


    DALI Intelligent Control Operator Interface






    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-HB100-CGXP
    2.2
    320*320*165
    2.9
    1PCS/CTN
    DR-HB150-CGXP
    2.4
    355*350*165
    3.1
    1PCS/CTN
    DR-HB200-CGXP
    2.5
    410*410*175
    3.3
    1PCS/CTN
    DR-HB240-CGXP
    2.9
    410*410*175
    3.8
    1PCS/CTN

    FAQ


    Q1:What should I pay attention to when buying LED high bay lights?
    RE:When buying LED high bay lights, if you look at the price of LED high bay lights first, or put the price first, you are very wrong, because the price is the most sensitive one that can influence personal thoughts. Nowadays, manufacturers in all walks of life are mixed, with intermediary traders stepping in. This has led to market chaos, disordered prices, and uneven quality.


    Analysis of the market based on more than ten years of experience: the situation encountered by ordinary customers; there are low prices that do not dare to buy, high prices are reluctant to buy, sellers are too close to buy, and the more they are, the less they know how to buy . The main reason for this is because we still don't know what to pay attention to when buying LED high bay lights.


    1: Look at the quality of LED high bay lights, which is the configuration. First of all, what brand does the LED high bay light chip use? Imported first-line brands have high luminous efficiency, long life, low luminous decay, and stability. Second, look at the power supply. A poor quality power supply is basically insufficient power, that is, if you take a 100w lamp, it is actually 40-50w, which will affect the life of the lamp. Then look at the material of the lamp housing. The price of the lamp also depends on the amount and purity of the aluminum used. Imported pure aluminum is used. The heat sink is large. The use of aluminum is naturally more. Only the material used can ensure the heat dissipation effect of the lamp. In addition, the electrical box of the lamp should be made of pure aluminum, and some cast iron has poor heat dissipation.


    2: Talk to the supplier about the company. Observe whether the supplier is professional through the conversation with each other, so as to ensure the authenticity of every accessory used and not cut corners. Some small companies sell you LED high bay lights with low configuration and low prices. After a few months of use, the lights are broken. When you go to them, some companies have closed down or changed their names to continue to deceive consumers.


    3: Negotiate prices with suppliers. Ask the supplier's price system, not the specific product price, so that you can clearly understand the price space, so you can see how much space you need for the product price. Then put forward the product and inform the demand of the product. The quotation is the supplier's business. With so much discussion, the supplier can only make a reasonable price.


    4: place orders in time. Don’t hesitate after the negotiation, be fast, because this way the supplier will respond to you quickly; if you slowly buy the order, the supplier will slowly prepare the goods for you. The production of LED high bay lights is always available. Made to order. The supplier will definitely have many customers, and the supplier must arrange the goods in order according to the pace of things, so the supplier will be faster if you are faster!
