6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

    Buy cheap 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW from wholesalers

    Buy cheap 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW from wholesalers
    • Buy cheap 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW from wholesalers
    • Buy cheap 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW from wholesalers
    • Buy cheap 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW from wholesalers

    6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

    Ask Lasest Price
    Brand Name : DUALRAYS(OEM available)
    Model Number : DR-LB150-FG3XX
    Certification : CE, ROHS, TUV/GS, LM79, LM80
    Price : Please inquiry for latest price
    Payment Terms : L/C, T/T, Western Union, paypal
    Supply Ability : 120000pcs/month
    Delivery Time : 5-15 bussiness days
    • Product Details
    • Company Profile

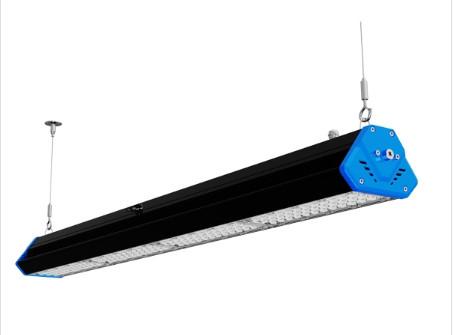

    6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

    150W IP65 LED Linear Low Bay Light Heavy 6063 Aluminum PC Meanwell Driver



    Options:
    > Driver: Sosen, Meanwell ELG/HLG;
    > Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

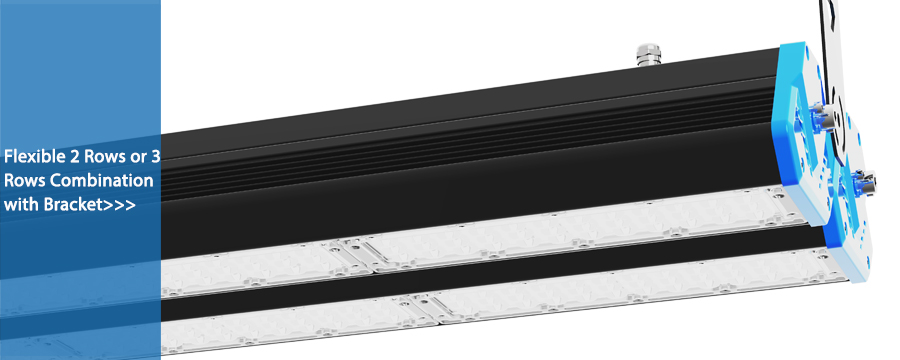

    > Unit Combination : 2 Rows or 3 Rows Combination with Bracket;
    > Lens : Symmetric 30°/60°/90°,Asymmeric 30*70°/80*155/60*90° beam angle;
    > Installation: Suspension, Wall Mounting;
    > Factories / Warehouses / Supermarket
    > Exhibitions / Showrooms / Animal Farm
    > Barns and Riding Halls / Logistic Center
    > High Rooms and Halls / Stadium / Chemical Plant
    > Traditional lamp replacement



    Model No.DR-LB050-FG1XXDR-LB100-FG2XXDR-LB150-FG3XXDR-LB200-FG4XXDR-LB300-FG3XDX
    System Watts/W50W100W150W200W
    300W
    System Efficiency/LPW140LPW
    Lumen Output/lm7.000±5%14.000±5%21.000±5%28.000±5%42.000±5%
    Rated Input Voltage/VAC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
    LEDs Light SourceSMD3030
    SDCM<5
    CCT/K5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra>70Ra (>80Ra for Option)
    Power Factor>0.95
    THD<10%
    Beam Angle(Optional)30°/60°/90°/30*70°/80*155/60*90°
    UGR<25
    Surge Protection6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED DriverMeanwell ELG/HLG,Sosen
    IP RatingIP65
    Dimming(Optional)0/1-10V/DALI/Zigbee
    Sensor(Optional)Motion Sensor,Daylight Sensor
    Emergency(Optional)Available (30W @ 3Hrs for Standard)
    Protection ClassClassⅠ
    Finishing Color(Optional)Black RAL9017(Standard)
    MaterialAluminum+PC
    Lifespan/hrs70.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃- 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)Loop Hanging, Ceiling Mounting, Wall Mounting
    CertificateCE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


    Character/Power
    100W
    150W
    200W
    240W
    300W
    A / mm
    284.8
    542.9
    801
    1058.6
    801
    B / mm
    134
    134
    134
    134
    268
    C / mm
    110.5
    110.5
    110.5
    110.5
    110.5







    DALI Device


    DALI Intelligent Control Diagram


    DALI Intelligent Control Operator Interface













    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-HB100-EGXP
    8.3
    325*490*380
    9.2
    4PCS/CTN
    DR-HB150-EGXP
    13.8
    577*490*380
    15.2
    4PCS/CTN
    DR-HB200-EGXP
    19.5
    828*490*380
    21.2
    4PCS/CTN
    DR-HB240-EGXP
    30.2
    1180*490*380
    32.4
    4PCS/CTN
    DR-HB300-EGXP
    39.5
    828*980*380
    42.4
    2PCS/CTN
