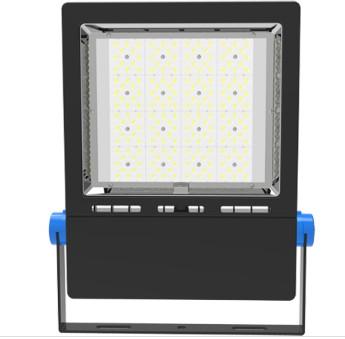

2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty

DUALRAYS LIGHTING Co.,LTD.
Contact Now
    Buy cheap 2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty from wholesalers

    Buy cheap 2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty from wholesalers
    • Buy cheap 2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty from wholesalers
    • Buy cheap 2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty from wholesalers
    • Buy cheap 2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty from wholesalers
    • Buy cheap 2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty from wholesalers

    2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-FL300-CGXX
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    • Product Details
    • Company Profile

    2020 Hot Sale 300W Outdoor Led Flood Light Fixtures IP66 Multiple Beam Angke Options with 5 Years Warranty


    Options:
    > Driver: Sosen,Meanwell ELG/HLG driver;
    > Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
    > Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
    > Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
    > Microwave Motion Sensor;

    > Airports & Harbors
    > Billboard illumination
    > Large recreational sports facilities
    > Industrial areas & Landscape buildings
    > Roundabouts and motorway junctions

    Model No.
    DR-FL050-CGXXDR-FL100-CGXXDR-FL150-CGXXDR-FL200-CGXXDR-FL300-CGXX
    System Watts/W
    50W100W150W200W
    300W
    System Efficiency/LPW
    120~125LPW
    Lumen Output/lm
    6.500±5%12.500±5%18.750±5%25.000±5%37.500±5%
    Rated Input Voltage/V
    AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
    LEDs Light Source
    SMD3030
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%
    Beam Angle(Optional)
    Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
    UGR
    <25
    Surge Protection
    6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED Driver
    Sosen,Meanwell ELG / HLG Optional
    IP Rating
    IP65
    Dimming(Optional)
    1-10V, DALI,PWM,Zigbee for Option
    Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Sensor (Optional)Motion Sensor
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+Toughened Glass
    Lifespan/hrs
    62.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Switching Cycles100,000 Times
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

    Character/Power
    100W
    150W
    200W
    240W
    300W
    A / mm
    389
    389
    437
    493
    582
    B / mm
    297
    297
    346
    379
    444
    C / mm
    57
    57
    57
    57
    60















    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-FL050-CGXX
    3.6
    355*350*165
    4.5
    1PCS/CTN
    DR-FL100-CGXX
    3.8
    355*350*165
    4.7
    1PCS/CTN
    DR-FL150-CGXX
    4.5
    415*410*175
    5.8
    1PCS/CTN
    DR-FL200-CGXX
    5.7
    475*470*195
    7.3
    1PCS/CTN
    DR-FL300-CGXX
    9.3
    475*470*195
    11.5
    1PCS/CTN
