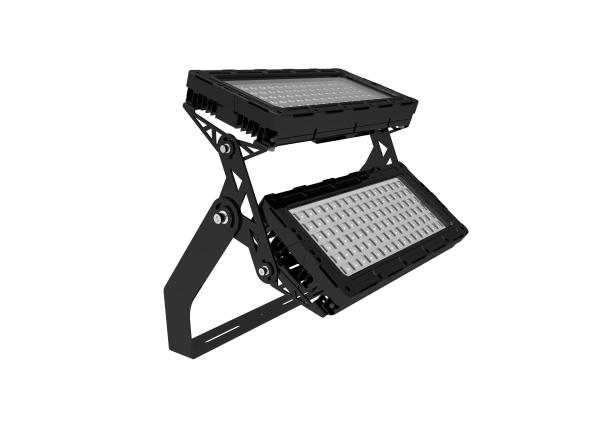

    600W IP66 Moudlar LED Flood Light 5 Years Warranty For Stadium Meanwell Driver

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-SPL600-DGXX
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    • Product Details
    • Company Profile

    600W IP66 Moudlar LED Flood Light 5 Years Warranty For Stadium Meanwell Driver

    Options:
    > Driver: Meanwell ELG/HLG driver;
    > Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
    > Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
    > Lens : Symmetrical 25°/40°/50°/90°;
    > Efficiency : 130~140LPW,150~160LPW
    > Aiming Device: Laser Pointer;
    > Light Glare: Shield;

    > Multiple and multipurpose sports facilities and arenas
    > Stadiums and Racing tracks
    > Public squares
    > Outdoor arenas
    > Indoor sports arenas and halls

    Model No.
    DR-SPL300-DGXXDR-SPL600-DGXXDR-SPL900-DGXXDR-SPL1200-DGXXDR-SPL1500-DGXXDR-SPL1800-DGXX
    System Watts/W
    300W600W900W1200W1500W
    1800W
    System Efficiency/LPW
    130~140LPW / 150~160LPW Optional
    Lumen Output (Max) /lm
    48.000±5%96.000±5%144.000±5%192.000±5%240.000±5%288.000±5%
    Rated Input Voltage/V
    AC200~240V, 50/60Hz
    LEDs Light Source
    SMD3030 / SMD5050
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%
    Beam Angle(Optional)
    Symmetrical 25°/40°/50°/90° beam angle optional
    UGR
    <25
    Surge Protection
    4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED Driver
    Meanwell ELG/HLG
    IP Rating
    IP65
    Dimming(Optional)
    1-10V, DALI,PWM,Zigbee
    Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Start Time0.5s
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+PC
    Lifespan/hrs
    70.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Switching Cycles100,000 Times
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available





















    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-SPL300-DGXX
    8.5
    585*315*260
    9.7
    1PCS/CTN
    DR-SPL600-DGXX
    17.4
    625*620*260
    18.8
    1PCS/CTN
    DR-SPL900-DGXX
    26.1
    625*820*260
    28.2
    1PCS/CTN
    DR-SPL1200-DGXX
    34.2
    625*1150*260
    36.5
    1PCS/CTN
    DR-SPL1500-DGXX
    39.3
    790*1240*260
    42.5
    1PCS/CTN
    DR-SPL1800-DGXX
    42.1
    790*1240*260
    46.3
    1PCS/CTN






    Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

    Q1: What is the warranty for the F4 LED Flood Light?
    RE: For the F4 Series LED flood light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

    Q2: What is colour temperature?
    RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
    the warmer the light given by the LED:
    Warm white = 3000±200K
    Natural white = 4000±200K
    Pure white = 5000±200K
    Cool white = 5700±200K
    Q3: Is there a MOQ?
    RE: 2PCS

    Q4: What is the Lead time?

    RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.


    Q5: Can you do DIAlux Simulation?
    RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

    Q6: Do you offer mounting accessories?

    RE: Yes, please contact us for details.


    Q7: Do you offer OEM or ODM?
    RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
    1. We can provide you with our present products with your own label;
    2. We can modify our products as your request;
    3. We can even develop totally new products based on your design;
    Q8: What‘re the chips and drivers used?
    RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

    Q9: What is the CRI?

    RE: Ra>80 for standard.


    Q10: IP Rating?
    RE: IP66.

    Q11: Labeling ?
    RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

    Q12: Finish color?
    RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

    Q13: Dimming functions?
    RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

    Q14: Is there cheap shipping cost to import to our country?
    RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
    orders,we suggest via air to airport plus our ship partner send to your door.

    Q15:Can we get support if we have our own market position?
    RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
