    1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-SPL1000-EGXP
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    Price : Negotiated After Inquiry
    • Product Details
    • Company Profile

    1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control


    Options:
    > Driver: Meanwell ELG/HLG driver;
    > Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
    > Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
    > Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
    > Aiming Device: Laser Pointer;

    > Logistics areas (Ports)
    > Stadiums and Racing tracks
    > Public squares
    > Apron lighting (Airports), Parking and Industrial areas
    > Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

    Model No.
    DR-SPL300-EGXPDR-SPL400-EGXPDR-SPL500-EGXPDR-SPL600-EGXPDR-SPL800-EGXPDR-SPL1000-EGXP
    System Watts/W
    300W400W500W600W800W
    1000W
    System Efficiency/LPW
    150~160LPW
    Lumen Output/lm
    48.000±5%64.000±5%80.000±5%96.000±5%128.000±5%160.000±5%
    Rated Input Voltage/V
    AC100~277V, 50/60Hz
    LEDs Light Source
    SMD5050
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%
    Beam Angle(Optional)
    20°/30°/60°/90°/140*60° Optional
    UGR
    <25
    Surge Protection
    4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED Driver
    Meanwell ELG/HLG
    IP Rating
    IP65
    Dimming(Optional)
    1-10V, DALI,PWM,Zigbee for Option
    Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Start Time0.5s
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+PC
    Lifespan/hrs
    70.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Switching Cycles100,000 Times
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

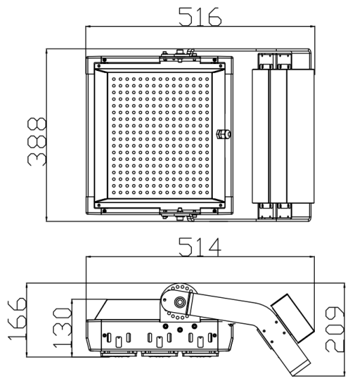

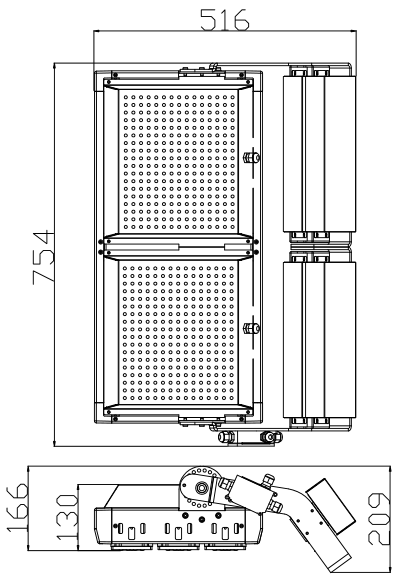

    (300W) (400W) (500W)

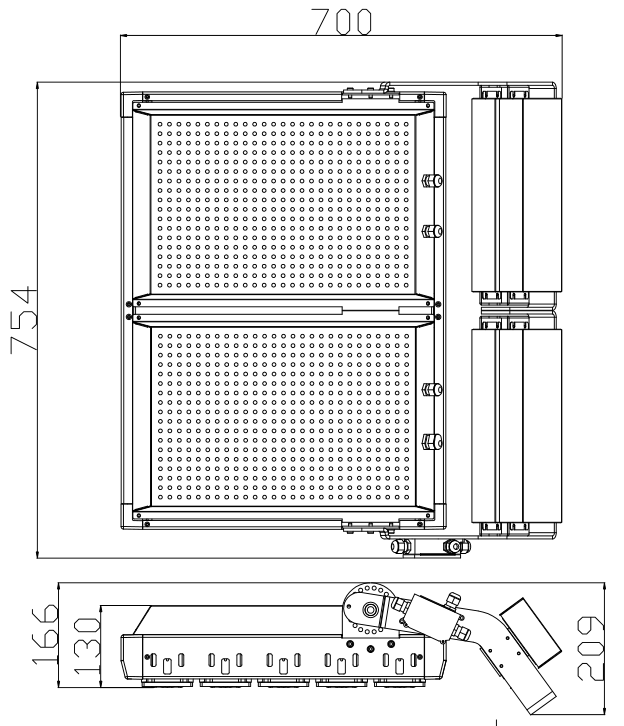

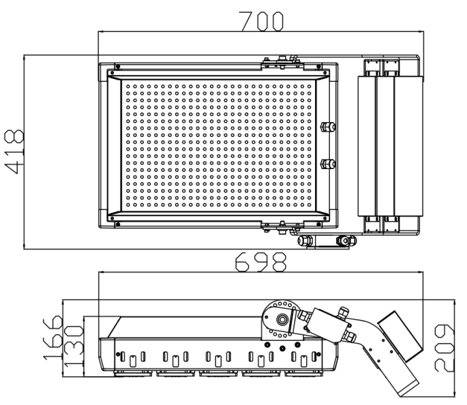

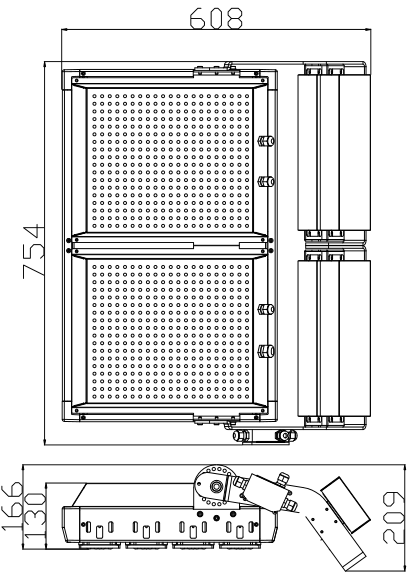

    (600W) (800W) (1000W)














    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-SPL300-EGXP
    13.1
    590*505*250
    14.2
    1PCS/CTN
    DR-SPL400-EGXP
    16.9
    680*505*250
    18.2
    1PCS/CTN
    DR-SPL500-EGXP
    4.8
    790*505*250
    23.5
    1PCS/CTN
    DR-SPL600-EGXP
    22.1
    830*590*250
    28.4
    1PCS/CTN
    DR-SPL800-EGXP
    30.8
    830*690*250
    32.5
    1PCS/CTN
    DR-SPL1000-EGXP
    36.5
    830*790*250
    39.8
    1PCS/CTN
