1200mm LED Tri Proof Light 120LPW 160LPW 40W 4 Feet Anti Corrotion
Warehouse Bus Train Station
> High Brightness SAN'AN SMD2835 LEDs, BOKE High PF Flicker-free
Driver DIP Switch Power
Adjustment Optional;
> Buckle Design End-cap,Quick & Convenient to Open and Relock
for Wiring, Greatly Improve Efficiency
And Save Labor Cost;
> 1/2 Al Housing + 1/2 PC Cover,Excellent Thermal Conductivity;
> IP65 / IK10 Protection;
> 120°beam angle;
> Single or Double Wiring Optional,Linkabkle Through Single or
Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion
sensor,Daylight sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;
Options:
> Driver: BOKE fixed power driver,DIP switch power adjustable
driver;
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming
/ Daylight sensor,Microwave
sensor,Emergency;
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2
3-pins or 5-pins (dimming) cable;
> Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations
| Model No. | DR-TP020-EG2XPX | DR-TP040-EG4XPX | DR-TP050-EG4XPX | DR-TP060-EG5XPX | DR-TP080-EG5XPX |
| System Watts/W | 20W | 40W | 50W | 60W | 80W |
| System Efficiency/LPW | 130LPW / 160LPW Optioanl |
| Lumen Output/lm | 2.600/3.200±5% | 5.200/6.400±5% | 6.500/8.000±5% | 7.800/9.600±5% | 10.400/12.800±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) |
| LEDs Light Source | SMD2835 |
| SDCM | <6 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >80Ra (>70Ra for Option) |
| Power Factor | >0.91 |
| THD | <10% |

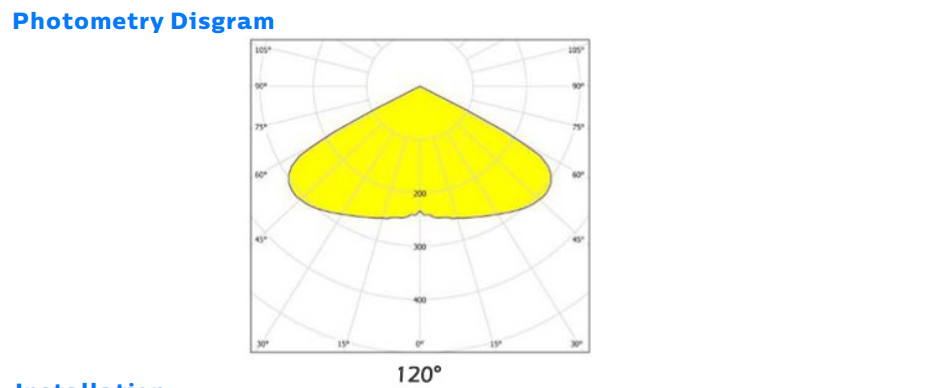

| Beam Angle(Optional) | 120° |
| UGR | <22 |
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional |
| IP Rating | IP65 |
| IK Level | IK08 |
| Dimming(Optional) | 1-10V, DALI,Zigbee |
| Sensor(Optional) | Daylight sensor/Microwave Sensor |
| Emergency(Optional) | 5W@3 Hours or Customized |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | White RAL9016 Optional |
| Material | AL+PC |
| Lifespan/hrs | 62.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Installation(Optional) | Suspension / Ceiling Mounting Optional |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
DALI Device
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
Note: For small order,express will be best.And for bulk order,ship by
sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship
partner send to your door.
Q1: What is the warranty? What service can you provide?
RE: For the D5 Series LED triproof light,Dualrays provide 5 years
warranty.If any quality problems on our side occured in this period
,we will take on the shipping cost and replacement.
Q2: What’s the payment methods you can accept ?
RE: L/C, T/T, Western Union, paypal, etc. all for options
Q3: Is there a MOQ? Can I start from small samples?
RE: No MOQ, 1psc sample order for testing welcome. DUALRAYS always
do our best to support every customer.
Q4: What is the production time?
RE: Normally 3-5 business days for samples, 10-15 business days for
bulk orders.
Q5: Can you do DIAlux Simulation?
RE: Yes, please send us your inquiry and sizes of your
applications, we have professional DIAlux team to support you, IES
files also can be downloaded on our Website.
Q6: Do you offer intelligent controllers?
RE: Yes, PIR Sensor, Emergency, 1-10V, DALI, Microwave Sensor
available, please contact us for details.
Q7: Finish color?
RE: Standard colors: Silver,other colors can be customized, based
on MOQ 50PCS.
Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free
drivers for option.
Q9: What is the CRI?
RE: Ra>80 or Ra>70
Q10: How about UGR?
RE: UGR<22.
Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing
labels (at request).
