DUALRAYS 50W 100W 150W 200W 300W High Mast Outdoor Modular LED Module Floodlight

Model No.	DR-FL200-CGXP
System Watts/W	200W
System Efficiency/LPW	150LPW
Lumen Output/lm	30.000±5%
Dimming(Optional)	0/1-10V/PWM/DALI/Zigbee
Installation(Optional)	Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting
Certificate	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Protection Class	ClassⅠ
LED Driver	Meanwell XLG/ELG/HLG,Sosen
Surge Protection	6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

Efficiency:
STANDARDLine:

PROLine: 150LPW

PRIMELine:

Features:

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;

* IP65 Protection;

* 15°/30°/45°/60°/90°/30*70°/80*140°/60*130°beam angle optional;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations:Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting;
* Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;;
* ±90° adjustable European bracket;

* Customized supported for special projects;

Options:

> Driver: Sosen,Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;

> Microwave Motion Sensor;

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355*350*165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355*350*165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415*410*175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475*470*195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475*470*195	11.5	1PCS/CTN

FAQ

Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.

Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.

Q2: What are the advantages of flood light?

RE:Advantages of LED flood light;

①High-purity aluminum reflector, the most accurate beam and the best reflection effect.

②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.

③It is troublesome to change the light bulb with the open type behind.

④The lamps are equipped with a scale board to adjust the projection angle.

⑤It is suitable for lighting in large places and buildings.

Q1: IP Rating?

RE: IP66.

Q2: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q3: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q4: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q5: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

(Partnership)

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

(Customer Portfolio)

Dualrays is practicing the enterprise management principle “Perfect or Nothing”.

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

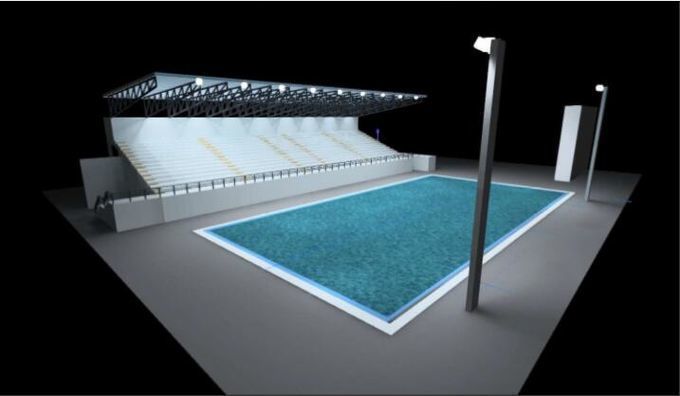

(DIALUX Simulation)
