    DUALRAY UFO LED High Bay Light Fixture Intelligent Motion Sensor 160LPW High Light Efficiency 100W 150W 200W

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-HB150-CG2
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    Price : 37.98USD/PCS
    • Product Details
    • Company Profile

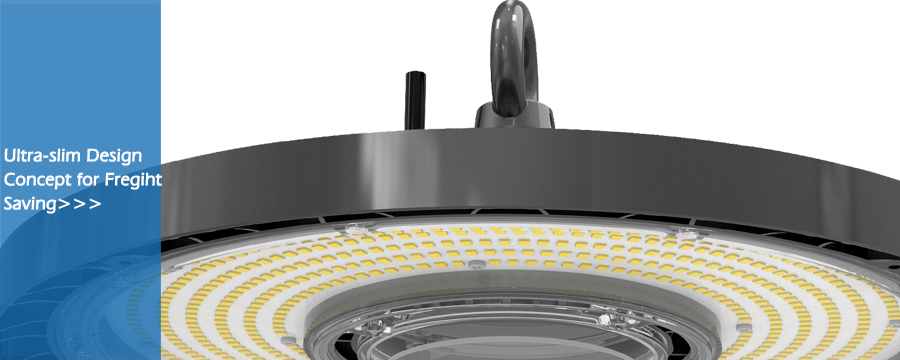

    DUALRAY UFO LED High Bay Light Fixture Intelligent Motion Sensor 160LPW High Light Efficiency 100W 150W 200W

    DUALRAY Intelligent Motion Sensor 160LPW High Light Efficiency 100W 150W 200W UFO LED High Bay Light Fixture

    * LUMILEDS LUXEON High Brightness SMD3030 LEDs,DUALRAYS Built-in Driver;
    * IP65 Protection;
    * 60°/90°(with lens)/120°(without lens) beam angle optional;
    * D-Mark tested for the use in paper production,wood processing etc with toughened glass;
    * Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting,E40 Socket Available;
    * Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
    * Customized supported for special projects;
    Efficiency:
    STANDARD
    Line:
    PROLine: 140LPW
    PRIMELine:

    Model No.DR-HB100-CGXPDR-HB150-CGXPDR-HB200-CGXP
    System Watts/W100W150W200W
    System Efficiency/LPW140LPW / 160LPW Optional
    Lumen Output/lm14.000 / 16.000±5%21.000 / 24.000±5%28.000 / 32.000±5%
    Rated Input Voltage/VAC100~277V, 50/60Hz
    LEDs Light SourceSMD2835 (1W)
    SDCM<5
    CCT/K5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra>70Ra (>80Ra for Option)
    Power Factor>0.95
    THD<10%
    Beam Angle(Optional)60°/90°/120° Optional
    UGR<25
    Surge Protection3.75~4KV SPD built in Driver
    LED DriverDUALRAYS Own-developed High PF Non-isolated Driver
    IP RatingIP65
    Dimming(Optional)0/1-10V/Zigbee
    Sensor(Optional)Motion Sensor,Daylight Sensor
    Emergency(Optional)Available (30W @ 3Hrs for Standard)
    Protection ClassClassⅠ
    Finishing Color(Optional)Black RAL9017(Standard) / White RAL9016 Optional
    MaterialAluminum+PC (Toughened Glass Cover Optional)
    Lifespan/hrs60.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃- 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)Loop Hanging, Ceiling Mounting, Wall Mounting
    CertificateCE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available










    Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
    products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
    service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
    guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
    maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
