IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor

DUALRAYS LIGHTING Co.,LTD.
Contact Now
    Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers

    Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers
    • Buy cheap IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor from wholesalers

    IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : D3 Series
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-15 business days
    Supply Ability : 100000pcs/month
    • Product Details
    • Company Profile

    IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D2 Series With Microwave Sensor

    IP65 Waterproof LED Tri-Proof Light 160LM/W Dualrays D3 Series With Microwave Sensor


    Model No.
    DR-TP020-CG2XPXDR-TP030-CG4XPXDR-TP040-CG4XPXDR-TP040-CG5XPXDR-TP050-CG5XPX
    System Watts/W
    20W30W40W40W
    50W
    System Efficiency/LPW
    130LPW / 160LPW Optioanl
    Lumen Output/lm
    2.600/3.200±5%3.900/4.800±5%5.200/6.400±5%5.200/6.400±5%6.500/8.000±5%
    Rated Input Voltage/V
    AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
    LEDs Light Source
    SMD2835
    SDCM
    <6
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >80Ra (>70Ra for Option)
    Power Factor
    >0.91
    THD
    <10%
    Beam Angle(Optional)
    120°
    UGR
    <22
    LED DriverBOKE Fixed Power/ DIP Switch Power Adjustable Optional
    IP RatingIP65
    IK Level
    IK08
    Dimming(Optional)
    1-10V, DALI,Zigbee

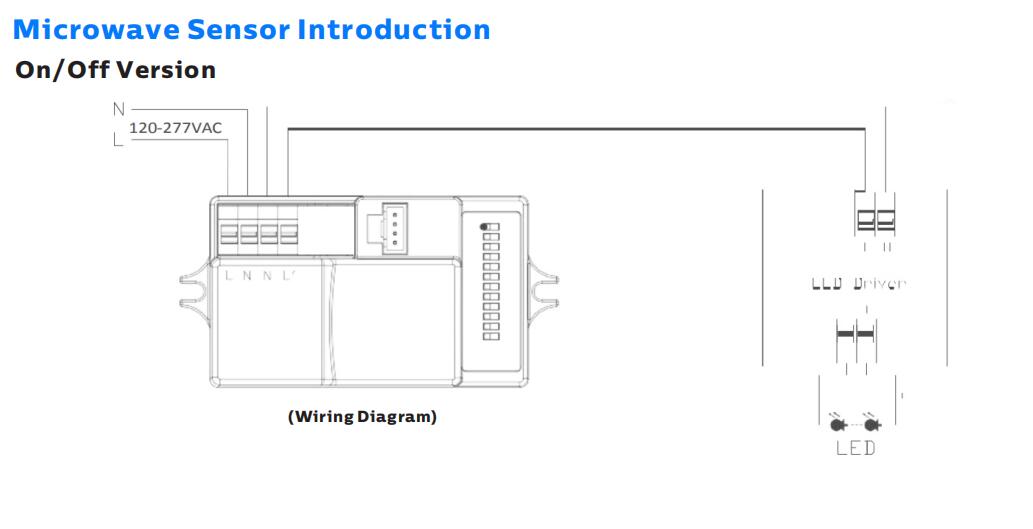

    Sensor(Optional)
    Daylight sensor/Microwave Sensor
    Emergency(Optional)
    5W@3 Hours or Customized
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    White RAL9016 Optional
    Material
    PC+PC
    Lifespan/hrs
    54.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)
    Suspension / Ceiling Mounting Optional
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

    > Driver: BOKE fixed power driver,DIP switch power adjustable driver;
    > Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,Microwave sensor,Emergency;
    > Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
    > Installation : Suspension, Wall Mounting;
    > Wiring: Single or double wiring;
    > Replacement for fluorescent NCF;

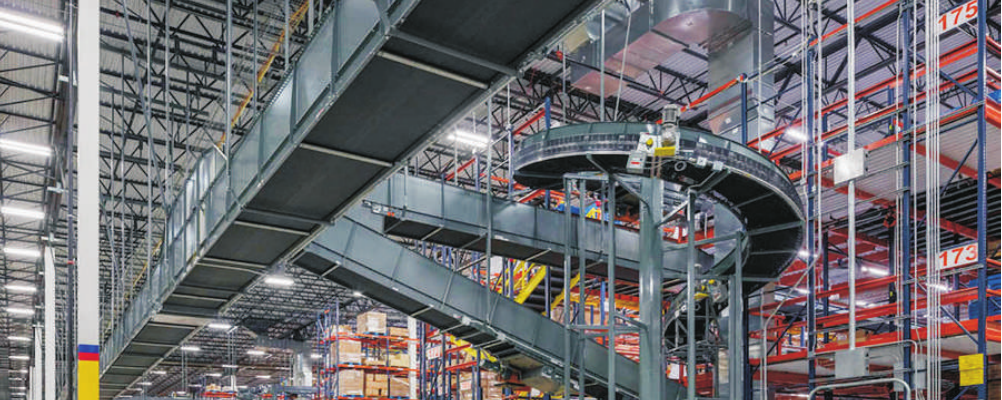

    > Workshops and warehouse;
    > Garage and car parks;
    > Sport facility;
    > Corridor/Gallery/Corridor;
    > Outdoor & Indoor Locations;
    Character/Length
    2ft
    4ft
    5ft
    A
    602mm
    1202mm
    1502mm
    B
    638mm
    1238mm
    1538mm
    C
    63mm
    63mm
    63mm
    D
    73mm
    73mm
    73mm


    INSTALLATION GUIDE
    IMPORTANT SAFETY INFORMATION:
    Please read all the instructions below before installation
    > Make sure that the supply voltage corresponds to the rated product voltage;
    > The product must be installed by a qualifed electrician in accordance with the National Electrical Code and corresponding local codes.
    > If the product is damaged, do not use it!

    RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
    Keep or give to the owner for future reference.

    Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
    Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
    Risk of Fire: Minimum 194°F supply conductors. Consult a qualifed electrician to ensure correct branch circuit conductor. DUALRAYS® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.

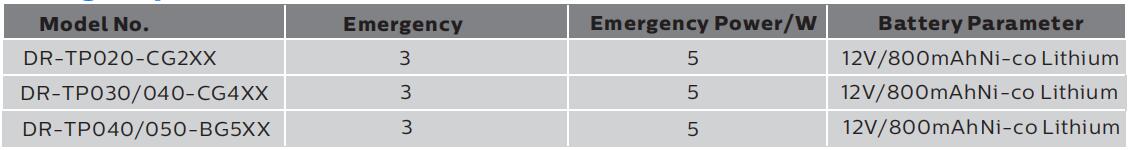

    (I) Emergency Function


    DALI Device
    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-TP020-CG2XP
    12.5
    670*440*200
    13.2
    9PCS/CTN
    DR-TP030-CG4XP
    15.8
    1270*360*200
    17.5
    9PCS/CTN
    DR-TP040-CG4XP
    16.1
    1270*360*200
    18.3
    9PCS/CTN
    DR-TP040-CG5XP
    19.1
    1570*360*200
    20.6
    9PCS/CTN
    DR-TP050-CG5XP
    19.5
    1570*360*200
    21.4
    9PCS/CTN
