    600W Basketball Lighting LED Flood Light Energy Saving 5 Years Warranty with Meanwell ELG/HLG Driver

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-SPL600-EGX
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    Price : Negotiated
    • Product Details
    • Company Profile

    600W Basketball Lighting LED Flood Light Energy Saving 5 Years Warranty with Meanwell ELG/HLG Driver

    Options:
    > Driver: Meanwell ELG/HLG driver;
    > Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
    > Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
    > Lens : Symmetrical 25°/40°/50°/90°;
    > Efficiency : 130~140LPW,150~160LPW
    > Aiming Device: Laser Pointer;
    > Light Glare: Shield;

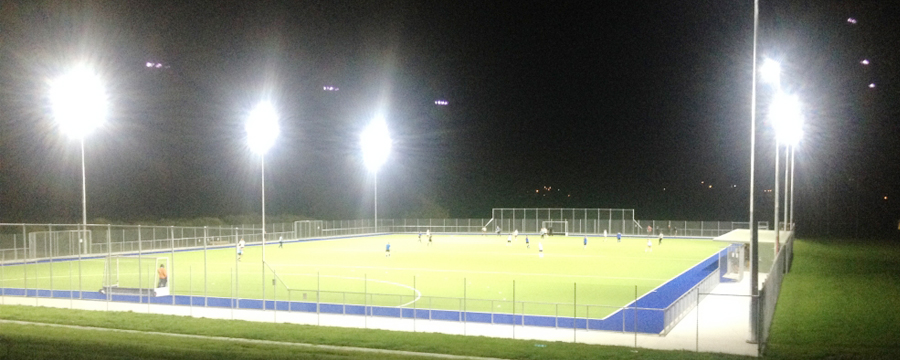

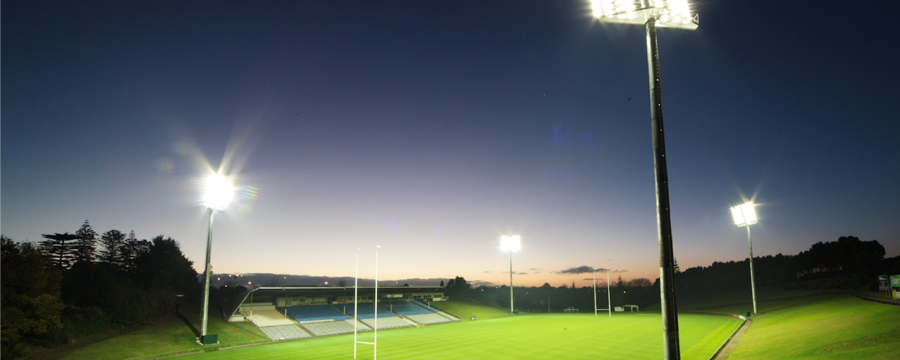

    > Multiple and multipurpose sports facilities and arenas
    > Stadiums and Racing tracks
    > Public squares
    > Outdoor arenas
    > Indoor sports arenas and halls

    Model No.
    DR-SPL300-EGXDR-SPL600-EGXDR-SPL900-EGXDR-SPL1200-EGXDR-SPL1500-EGXDR-SPL1800-EGX
    System Watts/W
    300W600W900W1200W1500W
    1800W
    System Efficiency/LPW
    130~140LPW / 150~160LPW Optional
    Lumen Output (Max) /lm
    48.000±5%96.000±5%144.000±5%192.000±5%240.000±5%288.000±5%
    Rated Input Voltage/V
    AC200~240V, 50/60Hz
    LEDs Light Source
    SMD3030 / SMD5050
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%

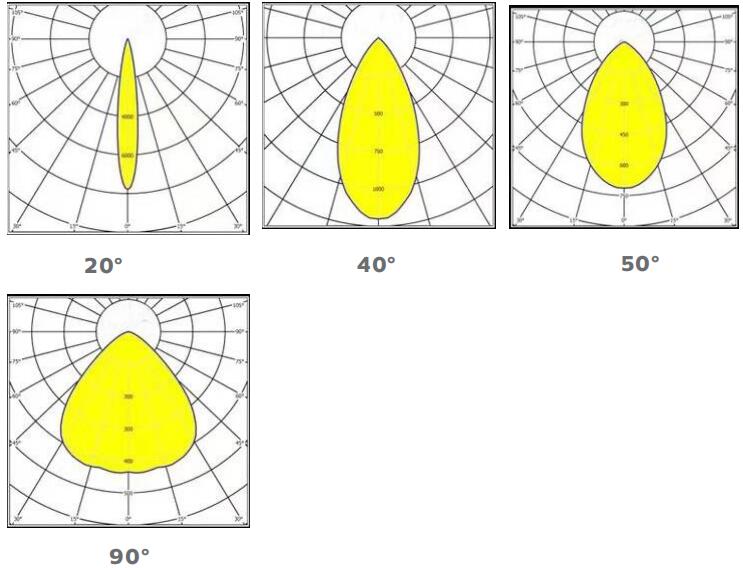

    Beam Angle(Optional)
    Symmetrical 25°/40°/50°/90° beam angle optional
    UGR
    <25
    Surge Protection
    4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED Driver
    Meanwell ELG/HLG
    IP Rating
    IP65
    Dimming(Optional)
    1-10V, DALI,PWM,Zigbee
    Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Start Time0.5s
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+PC
    Lifespan/hrs
    70.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Switching Cycles100,000 Times
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available





















    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-SPL300-DGXX
    8.5
    585*315*260
    9.7
    1PCS/CTN
    DR-SPL600-DGXX
    17.4
    625*620*260
    18.8
    1PCS/CTN
    DR-SPL900-DGXX
    26.1
    625*820*260
    28.2
    1PCS/CTN
    DR-SPL1200-DGXX
    34.2
    625*1150*260
    36.5
    1PCS/CTN
    DR-SPL1500-DGXX
    39.3
    790*1240*260
    42.5
    1PCS/CTN
    DR-SPL1800-DGXX
    42.1
    790*1240*260
    46.3
    1PCS/CTN
