Single or Double Wiring Linkable IP65 Waterproof Underground Parking Lot Light 5ft 60W LED Tri Proof Light Fixture

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

> Single or Double wiring;

> IP65/IP66 and IK10 for all industrial areas of application;

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

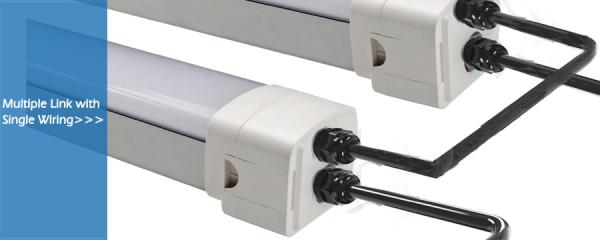

> Multiple Link with double wiring;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.

> Customized supported for special projects.

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Model No.	DR-TPX-EG2XX	DR-TPX-EG3XX	DR-TPX-EG4XX	DR-TPX-EG5XX
System Watts/W	20/30W	30/40W	40/50/60W	50/60/80W
Dimension/mm	600*90*74	900*90*74	1200*90*74	1500*74*74
System Efficiency/LPW	120LPW/160LPW (Optional)
Lumen Output/lm	2.400 .800±5%	3.600~6.400±5%	4.800~9.600±5%	6.000/12.800±5%
Finishing Color(Optional)	White RAL9016
Protection Class	ClassⅠ/ ClassⅡ
LED Driver	DUALRAYS / BOKE Flicker-free Driver,DIP Switch Power Adjustment Available
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Daylight sensor/Microwave Sensor
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

    As a specialist in modern, efficient ,advanced LED lighting for industrial and sport applications,DUALRAYS LIGHTING Co.,LTD. is one of the leading professional technology and marketing oriented NHTE (National High Technology Enterprise) in R&D,manufacturing,sales and service of intelligent, healthy and efficient industrial and sport LED luminaires.

    Our main products includes LED Triproof Light, LED High Bay, LED Flood Light, LED Sport Light,LED Street Light,Solar LED Street Light etc.

    We have strong R&D team which work closely to Marketing and Sales Department,and strict quality control system and facilities to ensure the quality, and we have built strategic partnership with the international top brands,such as CREE, LUMILEDS,NICHIA,MEANWELL, ect, we have set up our own engineering laboratory for safety test,such as the Photometric testing, EMI testing, EMC testing, Surge Testing, ESD testing, IES file etc.

    All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed,we focus on Western Europe and Oceania market , the LED luminaires have been completely proven to be independent innovations and intellectual property.

    We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

   In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

   DUALRAYS adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.

   DUALRAYS is practicing the enterprise management principle “Perfect or Nothing”.

   Technology Light Up Civilization!
