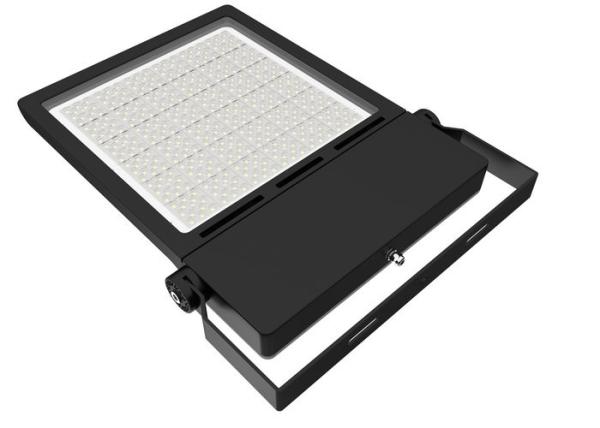

150W LED Sport Ground Floodlights Ground Mounting Wall Mountin, Ceiling Mounting Pipe Mounting

LED Sports Ground Floodlight Features:

* IP66 and IK10 for all industrial areas of application;

* 10°/25°/45°/60°/90°/130*30°polarized light 60° beam angle optional;

* No UV or IR and completely mercury free;

* Driver: ELG/HLG(Retangle),Sosen;

* ±90° adjustable European bracket.

* Customized supported for special projects;

Warranty	5 Years	IP Rating	IP66
Op. Temp.	-40°C to + 50°C(-40°F to 122°F)	Driver	Meanwell ELG/HLG,Sosen
CCT/K	3000K/4000K/5000K/5700K/6500K	Efficiency	150Lm/W (± 5%)
Installation(Optional)	Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting	Controls and Dimming	1-10V, DALI, PWM,Zigbee Wireless Dimming
Power	150W	Luminous Flux	112,500Lm (±5%)
Beam Angle(Optional)	10°/25°/45°/60°/90°/130*30° polarized light 60°	LED Chips	LUXEON SMD3030 LEDs
CRI	>70Ra (>80Ra for Option)	Lifespan	>50,000 Hours

Project Solution

Just offer us the dimension(area and height) of application, and illumination requirements, DUALRAYS will help you assess and provide solution. DUALRAYS‘ professional technology team accumulated rich experience in this
field. We will provide you a satisfy solution.

Step 1: DUALRAYS receive the information of application and requirements.

Step 2: DUALRAYS technology team assess according to the information details and develop solution.

Step 3: Solution will be sent by DUALRAYS salesman for customer reference.

Step 4: Customer assess the feasibility or the solution, and submit questions.

Step 5: DUALRAYS and customer consult modification plans.

Step 6: Solution closed Successfully.

Options:

> Driver: Sosen,Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;

> Microwave Motion Sensor;

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355*350*165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355*350*165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415*410*175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475*470*195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475*470*195	11.5	1PCS/CTN

FAQ

Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.

Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.

Q2: What are the advantages of flood light?

RE:Advantages of LED flood light;

①High-purity aluminum reflector, the most accurate beam and the best reflection effect.

②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.

③It is troublesome to change the light bulb with the open type behind.

④The lamps are equipped with a scale board to adjust the projection angle.

⑤It is suitable for lighting in large places and buildings.
