    150W 160LPW HB2.5 High Performance UFO LED High Bay For Wholesale

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-HB150-BHGXP
    Certification : CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
    Price : Please inquiry for updated price
    Payment Terms : L/C, T/T, Western Union, paypal
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    • Product Details
    • Company Profile

    150W 160LPW HB2.5 High Performance UFO LED High Bay For Wholesale

    150W 160LPW HB2.5 High Performance Cost UFO LED High Bay For Wholesale


    Features:

    > High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Driver;
    > ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;
    > IP65 / IK08 Protection;
    > 60°/90° /120° beam angle optional;
    > Corrosive Resistant Powder Coated Finish;
    > Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
    > Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
    > L70/B20 @ 56.000h;
    > Customized supported for special projects;
    Application:
    > Factories / Warehouses / Supermarket
    > Exhibitions / Showrooms / Animal Farm
    > Barns and Riding Halls / Logistic Center
    > High Rooms and Halls / Stadium / Chemical Plant
    > Traditional lamp replacement
    Specification:
    Model No.
    DR-HB100-BHGXP
    DR-HB150-BHGXP
    DR-HB200-BHGXP
    System Watts/W
    100W
    150W
    200W
    System Efficiency/LPW
    140LPW / 160LPW Optional
    Lumen Output/lm
    14.000 / 16.000±5%
    21.000 / 24.000±5%
    28.000 / 32.000±5%
    Rated Input Voltage/V
    AC100~277V, 50/60Hz
    LEDs Light Source
    SMD2835 (1W)
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%
    Beam Angle(Optional)
    60°/90°/120° Optional
    UGR
    <25
    Surge Protection
    3.75~4KV SPD built in Driver
    LED Driver
    DUALRAYS Own-developed High PF Non-isolated Driver
    IP Rating
    IP65
    Dimming(Optional)
    0/1-10V/Zigbee
    Sensor(Optional)
    Motion Sensor,Daylight Sensor
    Emergency(Optional)
    Available (30W @ 3Hrs for Standard)
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+PC (Toughened Glass Cover Optional)
    Lifespan/hrs
    56.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)
    Loop Hanging, Ceiling Mounting, Wall Mounting
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

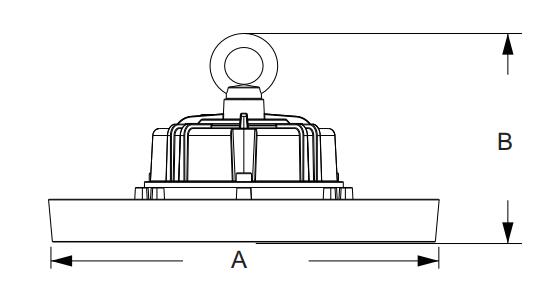

    Dimmision:

    Character/Power
    100W
    150W
    200W
    A
    φ255mm
    φ295mm
    φ335mm
    B
    151mm
    163mm
    168mm

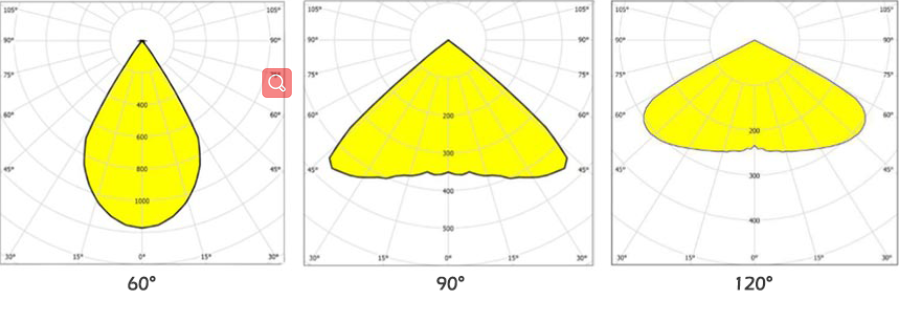

    Optical and photometric:

    Installation:

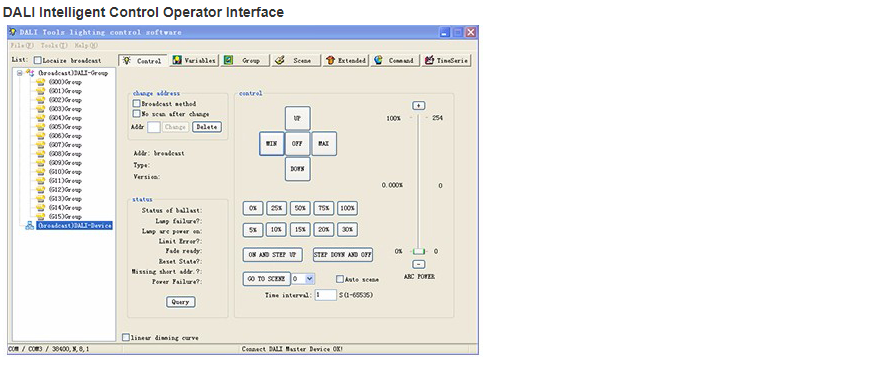

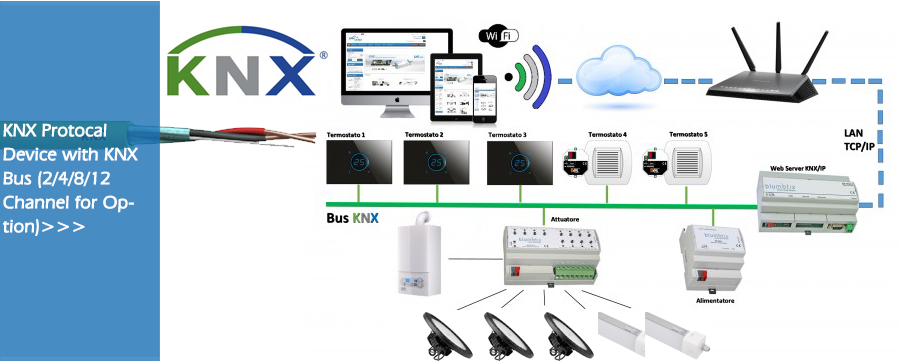

    Smart Lighting Introduction:


    Details Demo:

    Shipment and Package:

    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-HB100-BHGXP
    2.1
    280*280*130
    2.4
    1PCS/CTN
    DR-HB150-BHGXP
    2.5
    330*330*130
    2.8
    1PCS/CTN
    DR-HB200-BHGXP
    2.8
    380*380*170
    3.1
    1PCS/CTN
