High Power LED High bay Lamp Meanwell Driver For Public Square Industrial Warehouse

Features:
> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;

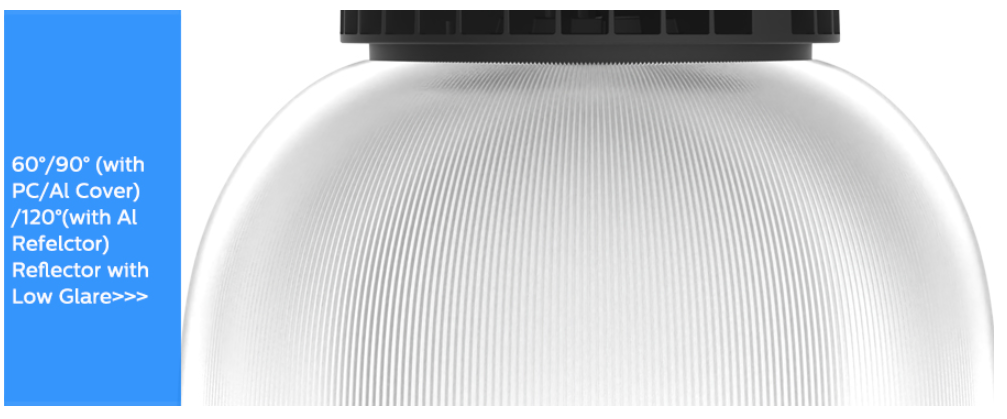

> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;
> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> L70/B20 @ 68.000h;

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Model No.	DR-HB100-XGXP	DR-HB150-XGXP	DR-HB200-XGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	LIFUD / SOSEN Round/Rectangle Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	60.000 Hrs (Ta=30℃@L70)

Packaging Information

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-CGXP	3.8	310*310*150	4.9	1PCS/CTN
DR-HB150-DGXP	4.1	310*310*150	5.4	1PCS/CTN
DR-HB200-DGXP	4.4	370*370*170	5.6	1PCS/CTN

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
