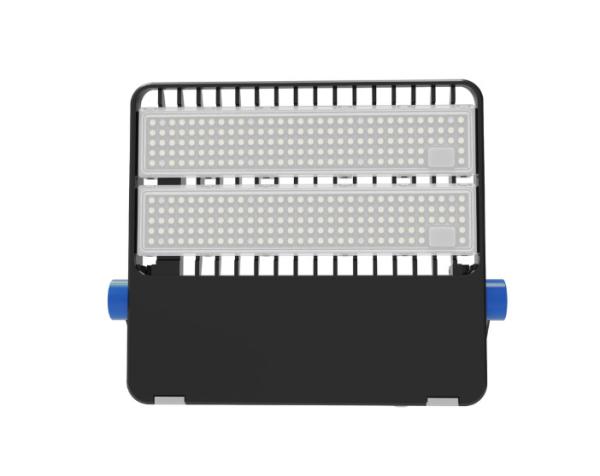

Daulrays F3.5 Series 400W Meanwell Sosen Driver Optional LED Sports Ground Floodlights IP66 Protection with 5 Year

Daulrays F4 Series 500W Modular LED Floodlight--Datas Sheet

Item No.	DR-FL500-XGXX	Controls and Dimming	1-10V, DALI, PWM,Zigbee Wireless Dimming
Input Voltage	AC100-277V 50/60HZ	CRI	>80
Power5	0W	IP Ranking	IP66
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
Luminous Flux	56,000lm	Warranty	5 years
Driving Brand	Meanwell/Sosen	LED Efficiency	140LPW

Daulrays F3.5 Series 500W Modular LED Floodlight--Feature

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 140 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications;

> IP66 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Multi-optional optical lens( 10°/25°/45°/60°/90°) especially for sport lighting;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> CE,RoHS listed,TUV/GS pending,LM79/LM80 available,5 years guarantee.

Modular LED Floodlight--​Options:

> Driver: ELG/HLG(Retangle),Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> ±90° adjustable European bracket;

> Installation:Ground Mounting, Wall Mounting, Ceiling Mounting,pipe mounting;

> Customized supported for special projects;

> Advertising, Billboard lighting

> Building exterior lighting

> Warehouse, Factory, stair corridors lighting

> Large and small parking, Square, Stadium lighting etc

> Bridges and public places, as well as other industrial and commercial lighting

> Gardens lighting
> Football court,tennis court ect sport lighting area

> Suitable for wet locations

Model No.	DR-FL050-XGXX	DR-FL100-XGXX	DR-FL200-XGXX	DR-FL300-XGXX	DR-FL400-XGXX
System Watts/W	50W	100W	200W	300W	400W
System Efficiency/LPW	135~140LPW
Lumen Output/lm	7.000±5%	14.000±5%	28.000±5%	42.000±5%	56.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	SOSEN / Meanwell ELG Optional
IP Rating	IP66
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	63.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Packaging Information:

Model No.	Power	Outer Carton Size(MM)	G.W(KG)	Quantity/CTN
DR-FL050-DGXP	50W	340*110*190	2.8	1PCS
DR-FL100-DGXP	100W	340*110*250	4.3	1PCS
DR-FL150-DGXP	150W	340*110*330	5.2	1PCS
DR-FL200-DGXP	200W	340*120*400	6.7	1PCS
DR-FL250-DGXP	250W	340*120*480	7.8	1PCS
DR-FL300-DGXP	300W	340*120*560	9.2	1PCS
DR-FL400-DGXP	400W	600*140*400	12.6	1PCS
DR-FL500-DGXP	500W	600*140*480	13.7	1PCS
DR-FL600-DGXP	600W	600*140*550	15.7	1PCS

Shipment:

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
