Waterproof IP65 Linear Tube Lighting Ceiling Mounting 6500K Cold White Light

Ask Lasest Price
Brand Name :	Dualrays LM5 Linear Retrofit Light
Model Number :	DR-LM037- EG5XPC
Certification :	CE ROHS TUV GS
Price :	US$37.98/pcs~US$40.76
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	50000pcs per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Waterproof IP65 Linear Tube Lighting Ceiling Mounting 6500K Cold White Light

Universal Linear Retrofit LM5, Dualrays Selbstentwickeltes Modul für den Ersatz von T5/T8-Leuchten

Schnelles Detail:
> BASELine Version:
> STANDARDLine-Ausführung:
> PROLine Version: 125LPW(PC-Abdeckung) ~ 140LPW(E-Typ Objektiv)
> PRIMELine Version: 160LPW(PC Abdeckung) ~ 180LPW(E-Typ Linse)
> Kompatibel mit 95 % der in den letzten 25 Jahren installierten führenden Kanalsysteme;
> Keine physischen Änderungen am bestehenden Kanalsystem erforderlich;
> Sicherheitskette zur Einsparung von Arbeitskosten und doppelter Sicherheitsgarantie;
> Keine UV- oder IR-Strahlung und völlig quecksilberfrei;
> L70/B20 bei 70.000h;
> Kundenspezifische Unterstützung für spezielle Projekte;

Übersetzt mit www.DeepL.com/Translator (kostenlose Version)

Specifications:

Product Name	Dualrays LM5 Linear Retrofit Module
Model No.	DR-LM037-EG5XPC
System Efficiency/LPW	PC COVER-125LPW / 150LPW E-type Lens-130LPW/160LPW
Rated Input Voltage/V	AC180~264V, 50/60Hz
Led chips	SMD2835 (0.5W)
CCT/K	3000K ~6500K
CRI/Ra	>80Ra
Power Factor	>0.95
Beam Angle(Optional)	120°
LED Driver	OSRAM,BOKE,TRIDONIC
Dimming(Optional)	Non-dimming/DALI
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting

Advantage:

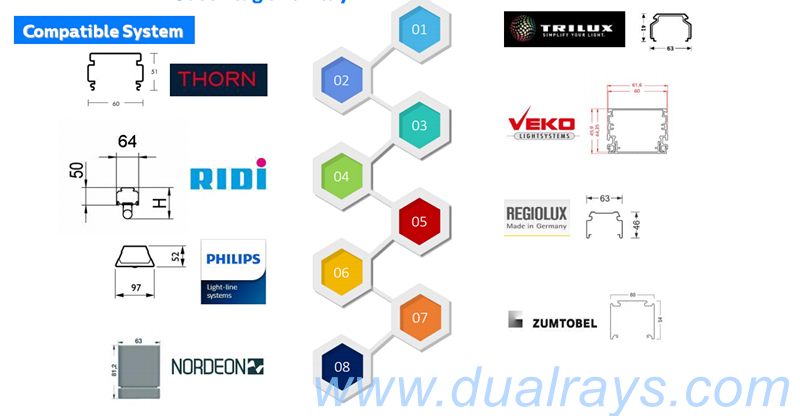

 1.Compatible with Most popular Trunking systems installed in the
past 25 years ;  2.Doesn’t need any electrical modifications;  3.Doesn’t need any
physical modifications on the existing trunking system,just plug
and play;

4.Perfect retrofit solution to replace the old 2 x36w, 1 x58w and 2 x58w T5/T8 fluorescent light with and without reflectors

Easy Maintenance

Smooth and easy to clean or interchangeable optic system

In Dirty environments luminaires quickly accumulate a lot of dust which will results in a significant decrease of the available light output while

the level of energy consumption remains the same, a significant decline of the luminaire efficiency is the result.

Due to the type of the accumulated dust, the maintenance manager will have two options as below:

Option 1. Clean the luminaires every 1 or 2 years for the optic.

Solution from DUALRAYS: Due to DUALRAYS smooth PMMA lens design this task is done easily and quickly.

Option 2. Exchange the lens because cleansing is not possible anymore.

Solution from DUALRAYS: the operation takes 2 minutes and requires a Phillips (Crosshead) screwdriver only.

Double the initial lifespan

For LED luminaire, driver is the weakest component, we use brand driver with high quality,which provides a life span of 58.000

hours (L80/B10), which is only 50% of the LEDs lifespan (93 000 hours).

It takes less than 3 minutes to exchange the driver (after 50.000 hours)with a simple Phillips (crosshead) screwdriver. With this

simple step you can double the lifespan of linear module to up to 93 000 hours, at an estimated third of the initial price only


Details Demo








Tag:Led Linear Retrofit Light,T5/T8 Tube Fluorescent Light Replacement
