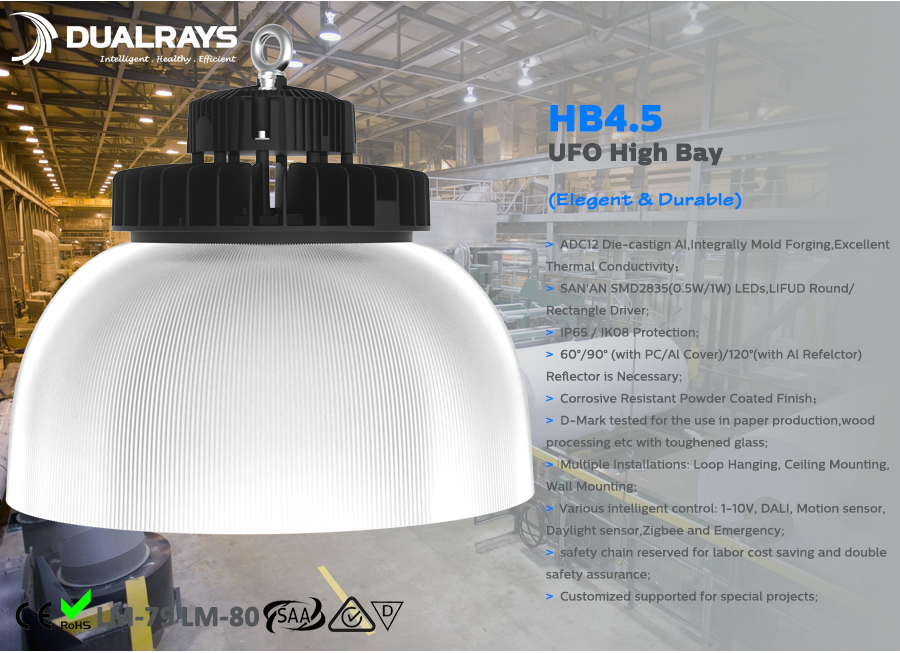

Dualrays Die Casting Aluminum 150W UFO LED High Bay Light Fixture
White PC Cover
Quick detail:
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal
Conductivity;
> High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed
Non-isolated Driver;
> IP65 / IK08 Protection;
> 60°/90° /120°beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> D-Mark tested for the use in paper production,wood processing
etc with toughened glass;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall
Mounting;
> Various intelligent control: 1-10V,Motion sensor,Daylight
sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;
> L70/B20 @ 60.000h;
> Customized supported for special projects;
Options:
> Driver: DUALRAYS Own-developed Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight
sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90°/120° beam angle optional;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
Specifications:DUALRAYS
HB4.5 Eco Version UFO High Light Spe.pdf
| Product Name | Dualrays 150W UFO High Bay Light |
|---|
| Model No. | DR-HB150-XGXP |
|---|
System Efficiency/LPW | 140LPW / 160LPW |
|---|
Rated Input Voltage/V | AC100~277V, 50/60Hz |
|---|
| Led chips | SMD2835 (1W) |
|---|
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
|---|
CRI/Ra | >70Ra (>80Ra for Option) |
|---|
Power Factor | >0.95 |
|---|
Beam Angle(Optional) | 60°/90°/120° |
|---|
LED Driver | DUALRAYS Own-developed High PF Non-isolated Driver |
|---|
Dimming(Optional) | 0/1-10V/Zigbee |
|---|
Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting |
|---|
Advantage:
1.High lumen output 140LPW/160LPW
2.Full Die-casted material.
3.Easy installation,time saving.
4.fast delivery with good quality
5.Customized logo to expand your brands.
6.Widely used in industrial lighting.
Applications:
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
