    2000W LED Sports Ground Floodlights Waterproof 280,000lm LED Module 500W

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-FL2000-FGXX
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    • Product Details
    • Company Profile

    2000W LED Sports Ground Floodlights Waterproof 280,000lm LED Module 500W

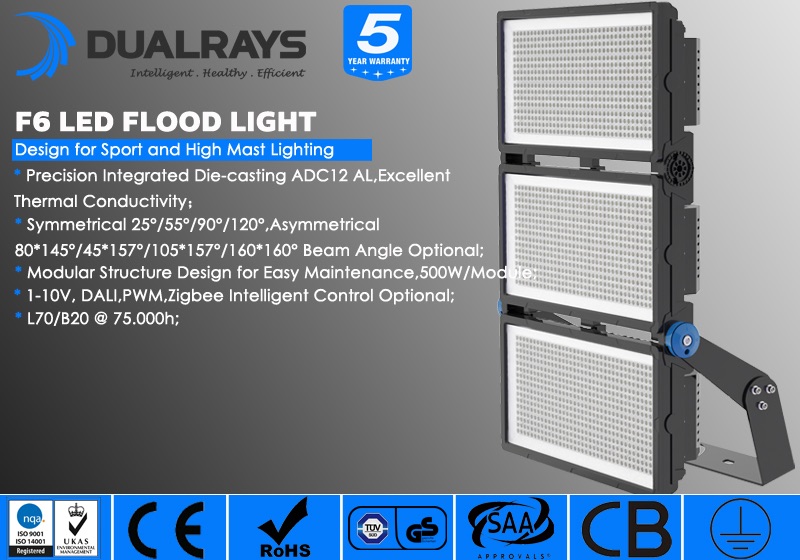

    Dualrays F6 Series 2000W​ LED Sports Ground Floodlight-- Detailed Product Description


    > Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;
    > High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, SOSEN / Meanwell HLG / ELG Driver Optional;
    > 180°Adjustable U Bracket Supporting Fixture;
    > IP66 / IK08 Protection;
    > Symmetrical 25°/55°/90°/120°,Asymmetrical 80*145°/45*157°/105*157°/160*160° beam angle optional;
    > Corrosive Resistant Powder Coated Finish;
    > Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant;
    > Multi-scale lens to create well-balanced distribution and reduce glare;
    > Modular Structure Design for Easy Maintenance,250W/Module;
    > Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
    > No UV or IR and completely mercury free;
    > L70/B20 @ 70.000h;
    > Customized supported for special projects

    Model No.DR-FL500-FGXXDR-FL1000-FGXXDR-FL1500-FGXXDR-FL2000-FGXX
    System Watts/W500W1000W1500W2000W
    System Efficiency/LPW130~140LPW / 150~160LPW Optional
    Lumen Output/lm (Max)80.000±5%160.000±5%240.000±5%240.000±5%
    Rated Input Voltage/VAC100~277V, 50/60Hz
    LEDs Light SourceSMD5050
    SDCM<5
    CCT/K5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra>70Ra (>80Ra for Option)
    Power Factor>0.95
    THD<10%
    Beam Angle(Optional)Symmetrical 25°/55°/90°/120°,Asymmetrical 80*145°/45*157°/105*157°/160*160° Optional
    UGR<25
    Surge Protection4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED DriverSOSEN / Meanwell ELG Optional
    IP RatingIP66
    Dimming(Optional)1-10V, DALI,PWM,Zigbee for Option
    Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Start Time0.5s
    Protection ClassClassⅠ
    Finishing Color(Optional)Black RAL9017(Standard) / White RAL9016 Optional
    MaterialAluminum+PC
    Lifespan/hrs75.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃- 40°C to + 65°C(-40°F to 149°F)
    Switching Cycles100,000 Times
    CertificateCE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
    * Suitable for wet locations
    * Parking Lot
    * Stadium
    * Bridges
    * Gardens lighting

















    Packaging Information:

    Model No.PowerOuter Carton Size(MM)G.W(KG)Quantity/CTN
    DR-FL050-DGXP50W340*110*1902.81PCS
    DR-FL100-DGXP100W340*110*2504.31PCS
    DR-FL150-DGXP150W340*110*3305.21PCS
    DR-FL200-DGXP200W340*120*4006.71PCS
    DR-FL250-DGXP250W340*120*4807.81PCS
    DR-FL300-DGXP300W340*120*5609.21PCS
    DR-FL400-DGXP400W600*140*40012.61PCS
    DR-FL500-DGXP500W600*140*48013.71PCS
    DR-FL600-DGXP600W600*140*55015.71PCS

    Shipment:


    Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
    Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
    time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
