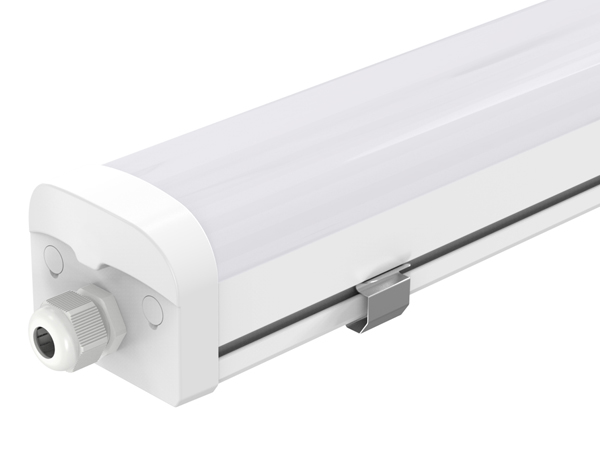

Dualrays D3Triproof Industry Lighting 20w 30w 40w 50w 150lpw
Triproof Light Led Fixture Used For Parking Lot Ce Rohs Saa
> BASELine Version: > PROLine Version: 120(Milky Cover)~130LPW(Transparent Cover) > PRIMELine Version: 150(Milky Cover)~160LPW(Transparent Cover)
>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free
Driver DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C; > IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection; > 120°beam angle;
> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;
| l No. | DR-TP020-CG2XPX | DR-TP030-CG4XPX | DR-TP040-CG4XPX | DR-TP040-CG5XPX | DR-TP050-CG5XPX |
| System Watts/W | 20W | 30W | 40W | 40W | 50W |
| System Efficiency/LPW | 130LPW / 160LPW Optioanl |
| Lumen Output/lm | 2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 5.200/6.400±5% | 6.500/8.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) |
| LEDs Light Source | SMD2835 |
| SDCM | <6 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >80Ra (>70Ra for Option) |
| Power Factor | >0.91 |
| THD | <10% |
| Beam Angle(Optional) | 120° |
| UGR | <22 |
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional |
| IP Rating | IP65 |
| IK Level | IK08 |
| Dimming(Optional) | 1-10V, DALI,Zigbee |
| Sensor(Optional) | Daylight sensor/Microwave Sensor |
| Emergency(Optional) | 5W@3 Hours or Customized |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | White RAL9016 Optional |
| Material | PC+PC |
| Lifespan/hrs | 54.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Installation(Optional) | Suspension / Ceiling Mounting Optional |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
| character /length | 2ft | 4ft | 5ft |
|---|
| A | 602mm | 1202mm | 1502mm |
|---|
| B | 638mm | 1238mm | 1538mm |
|---|
| C | 63mm | 63mm | 63mm |
|---|
| D | 73mm | 73mm | 73mm |
|---|
2ft,4ft,5ft length for you.
Application:
> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;
Advantage:
1.Eco version for your project. 2.Factory direct with fast delivery. 3.Quality control strickly.

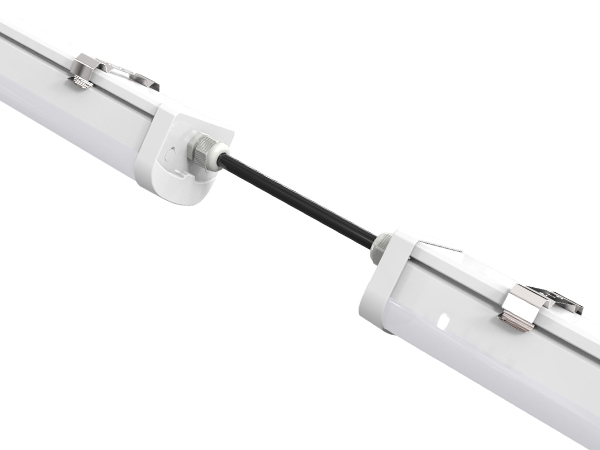

> Single or Double Wiring Optional,Linkabkle Thorugh Double End
Wiring; > Multiple Installations: Suspension, Wall Mounting; > Various intelligent control: 1-10V, DALI, Motion
sensor,Daylight sensor, > 304/316 Stainless Steel End Cap & Bracket,corrosion-proof; > No UV or IR and completely mercury free; > L70/B20 @ 54.000h; > Customized supported for special projects; > SAN'AN SMD2835 LEDs: LM80/TM-21 Available; > LM79/TM21/ISTMT/LCP and IES/LDT files available; (D3LED Triproof Light) > Europe Market:CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark; > North American Market: ETL/CETL,DLC Premium Pending; > Oceania Market: SAA,C-Tick,RCM
In addition,we can provide our customers value added service with
Dialux software for lighting design projects free of charge
Dualrays adheres to independent innovation, Dualraysers try to
build a world well-known LED industrial Lighting Brand.
