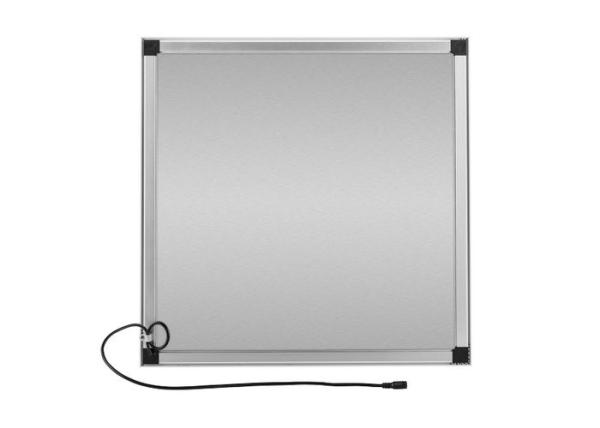

9.5mm 11.9mm Thickness Panel Linear LED Module Waterproof IP20 IP65
IP20 IP65 Waterproof Protection 9.5mm(BASELine Version) And 11.9mm
(PROLine/ PRIMELine Version) Thickness Panel Light

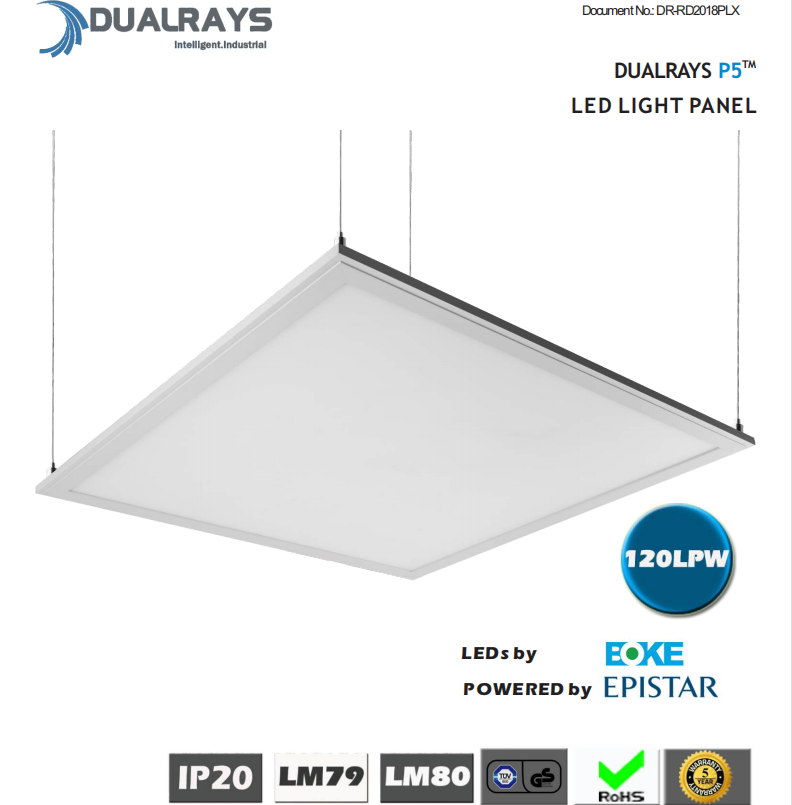

> BASELine Version: > STANDARDLine Version: 100LPW > PROLine Version: 120LPW > PRIMELine Version: 140LPW > 360° flexible screwless installation,convenient and labor cost saving; > IP20/IP65 Waterproof Protection for option; > 120° Beam angle; > UGR<19 for option; > Direct Emitting with RGBW,Anti-corrision RGBW for option; > 9.5mm(BASELine Version) and 11.9mm (PROLine/ PRIMELine Version) Thickness Optional; > Multiple Installations: Built-in, Suspension,Surface mounted; > Various intelligent control: 1-10V, DALI,Zigbee for Option; > No UV or IR and completely mercury free; (P5 LED Panel Light) > Standard Color for the Al Frame is RAL9003,RAL9016
optional(Matt White); > L70/B20 @ 50.000h; > Customized supported for special projects; > EPISTAR/SAN'AN SMD2835/4014 LEDs: LM80/TM-21 Available; > LM79/TM21/ISTMT/LCP and IES/LDT files available; > Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark; > North American Market: ETL/CETL,DLC Premium Pending; > Oceania Market: SAA,C-Tick,RCM
3 meters cable with Europe plug is available;
3T Japen Misubishi LGP, 3T Taiwan Chimei LGP, 2.5T China LGP
optional;
Custom-made size is available, UGR<19 is available;
Elegent design, adopting high quality 6063 Al for housing,
excellent heat dissipation;
28mm width Al frame to increase illunination area;
LEDs light source protector inside;
Protection cable together with lamps for 2nd protection;
Innovative 360° installation screwless flexible installation design
according to the actual
installation ocassions;
11.9mm thickness ultra slim design, 25mm width Al frame can greatly
increase the
illumination area;
300*300mm, 300*600mm, 600*600mm, 620*620mm, 300*1200 and 600*120mm
size
for option;
100LPW for Standard Version, 120LPW Proline Version for option,
CRI>83Ra, more
sufficient,BOKE flicker free driver,1-10V, DALI, Emergency
available;
TUV/GS,CE,RoHS,LM79,LM80 listed,5 years warranty;
APPLICATION
Replacement for fluorescent gird;
Offices / Schools;
Hospitals / Retails;
Corridors / Stairwells;
In addition,we can provide our customers value added service with
Dialux software for lighting design projects free of charge.
Dualrays adheres to independent innovation, Dualraysers try to
build a world well-known LED industrial Lighting Brand.
