Dimmable 2FT 4FT 6FT 40w 60w LED Tri Proof Lamp Indoor Parking Use

High Quality Aluminum Waterproof Indoor Parking School Dimmable 2FT 4FT 6FT 40w 60w Tri-proof ip65 Led Light

> Hi-slim design,elegent and fashional;

> Buckle Design End-cap,pretty Easy for Wiring and Installation;

> High Brightness SAN‘AN SMD2835 LEDs, DUALRAYS Own Developed High PF Flicker-free Driver;

> Full Plastic Material,Eco and Environment Friendly;

> IP65 / IK08 Protection;

> 120°beam angle;

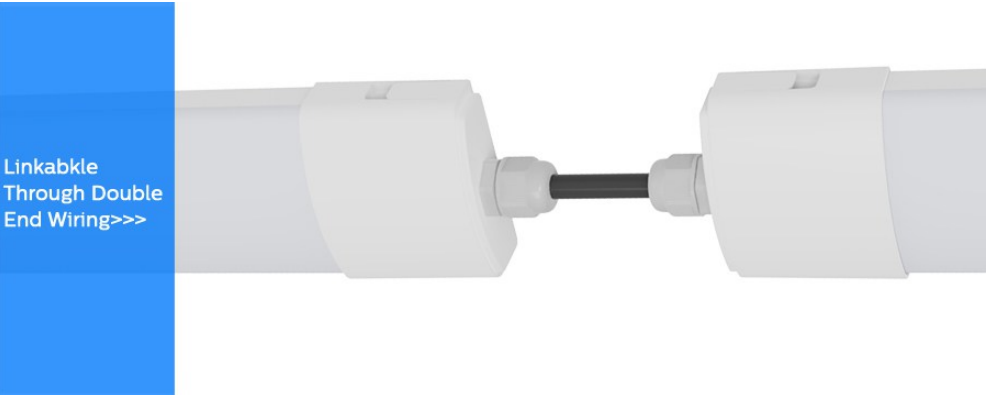

> Linkabkle Through Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting

> No UV or IR and completely mercury free;

> L70/B20 @ 52.000h;

> Customized supported for special projects;

Options:

> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;

> Installation : Suspension, Wall Mounting;

> Replacement for fluorescent NCF;

> Workshops and warehouse;

> Garage and car parks;

> Sport facility;

> Corridor/Gallery/Corridor;

> Outdoor & Indoor Locations;

Model No.	DR-TP020-BHG2XPX	DR-TP030-BHG2XPX	DR-TP040-BHG2XPX	DR-TP040-BHG2XPX	DR-TP050-BHG2XPX
System Watts/W	20W	30W	40W	40W	50W
System Efficiency/LPW	120LPW / 140LPW Optioanl
Lumen Output/lm	2.400/2.800±5%	3.600/4.200±5%	4.800/5.600±5%	4.800/5.600±5%	6.000/7.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	DUALRAYS Own Developed High PF Interior Driver
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V
Sensor(Optional)	No
Emergency(Optional)	No
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	PC+PC
Lifespan/hrs	52.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q1: What is the warranty? What service you provide during this period?

RE: For the D1 Series LED triproof light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What are the applications of your D1 tri-proof light?

RE:Our street light can be applied in Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations etc.

Q3: Can I start from 1pcs sample?

RE: Yes, 1pcs sample order for testing welcomed.

Q4: What is the production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, please send the parameters and requirements of your applications, we will find out best solutions for you, IES files also can be downloaded on our Website or inquire us to send.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness San‘an SMD2835 LEDs light source,BOKE flicker free drivers for standard configuration.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: What’s your shipping method ?

RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q11: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15: What beam angles can you provide?

RE: D1 tri-proof light's beam angle is 120°

Welcome to contact us for more information.
