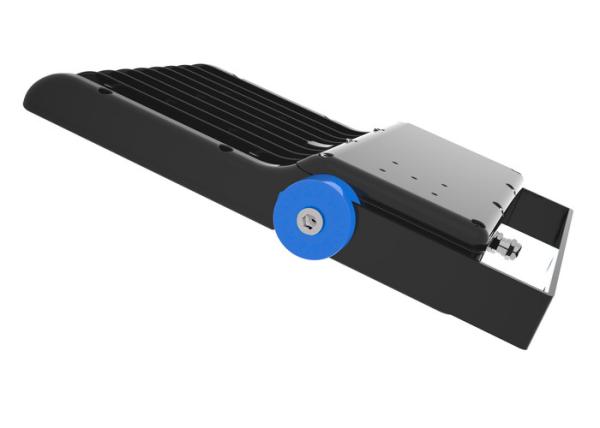

• Energy Saving Outdoor Stadium Floodlight Lighting 150W AC85 to 277V Long Working Life




• Quick details:


  LED Sports Ground Floodlights:

  * Module structure design concept,convenient for assemble and dis-assemble,maintenance,secure and reliable.;
  * Multi-optional optical lens( 15°/30°/45°/60°/90°/30*70°/80*140°) especially for sport lighting and high mast lighting;
  * Adopting high brightness SMD3030 LUMILEDS LEDs light source, high output lighting efficiency 140LPW upmost,high Color Rendering Index (CRI>80),
  low light decay;

  using high efficiency constant current driver, wide voltage input, can work in places with unstable voltage.

  *lightning protection, the lamp body is made of aluminum alloy material, high strength, corrosion resistance and weather resistance, good heat dissipation.

  * Green and environmentally friendly, using lead-free and mercury-free process

  * no radio frequency interference.



  System Input /V	AC 100~277V 50/60Hz
  LED Lights Source	SMD3030
  CRI(Ra)	>70Ra(>80Ra for optional)
  CCT/K	3000~6500K
  UGR	<25
  THD	<10%
  IP Rating	IP66

  > Efficient - up to 150LPW;

  > Die-casting Al for excellent heat dissipation;

  > IP66 and IK10 for all industrial areas of application;

  > Driver and housing separated by spacers;

  > 10°/25°/45°/60°/90°/130*30°polarized light 60° beam angle optional;

  > D-Mark tested for the use in paper production, wood processing etc;

  > No UV or IR and completely mercury free;




  Options:

  > Driver: Sosen,Meanwell ELG/HLG driver;

  > Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

  > Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

  > Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;

  > Microwave Motion Sensor;



  > Airports & Harbors

  > Billboard illumination

  > Large recreational sports facilities

  > Industrial areas & Landscape buildings

  > Roundabouts and motorway junctions



  Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
  System Watts/W	50W	100W	150W	200W	300W
  System Efficiency/LPW	120~125LPW
  Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
  Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
  LEDs Light Source	SMD3030
  SDCM	<5
  CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
  CRI/Ra	>70Ra (>80Ra for Option)
  Power Factor	>0.95
  THD	<10%
  Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
  UGR	<25
  Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
  LED Driver	Sosen,Meanwell ELG / HLG Optional
  IP Rating	IP65
  Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
  Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
  Sensor (Optional)	Motion Sensor
  Protection Class	ClassⅠ
  Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
  Material	Aluminum+Toughened Glass
  Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
  Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
  Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
  Switching Cycles	100,000 Times
  Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available




  Character/Power	100W	150W	200W	240W	300W
  A / mm	389	389	437	493	582
  B / mm	297	297	346	379	444
  C / mm	57	57	57	57	60


















  Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
  DR-FL050-CGXX	3.6	355*350*165	4.5	1PCS/CTN
  DR-FL100-CGXX	3.8	355*350*165	4.7	1PCS/CTN
  DR-FL150-CGXX	4.5	415*410*175	5.8	1PCS/CTN
  DR-FL200-CGXX	5.7	475*470*195	7.3	1PCS/CTN
  DR-FL300-CGXX	9.3	475*470*195	11.5	1PCS/CTN




  FAQ




  Q1:What is a flood light?
  RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.

  Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.




  Q2: What are the advantages of flood light?

  RE:Advantages of LED flood light;

  ①High-purity aluminum reflector, the most accurate beam and the best reflection effect.

  ②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.

  ③It is troublesome to change the light bulb with the open type behind.

  ④The lamps are equipped with a scale board to adjust the projection angle.

  ⑤It is suitable for lighting in large places and buildings.
