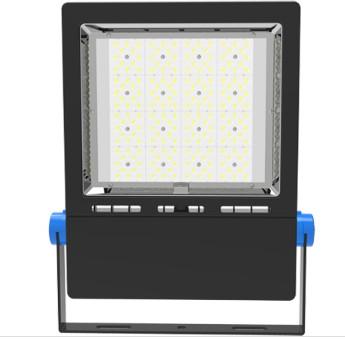

300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court

DUALRAYS LIGHTING Co.,LTD.
Contact Now
    Buy cheap 300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court from wholesalers

    Buy cheap 300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court from wholesalers
    • Buy cheap 300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court from wholesalers
    • Buy cheap 300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court from wholesalers
    • Buy cheap 300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court from wholesalers

    300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court

    Ask Lasest Price
    Brand Name : DUALRAYS
    Model Number : DR-FL300-CGXX
    Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15 Bussiness Day
    • Product Details
    • Company Profile

    300W LED Flood Lights IP66 150LmW With Different Beam Angle For Football Court


    Options:
    > Driver: Sosen,Meanwell ELG/HLG driver;
    > Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
    > Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
    > Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
    > Microwave Motion Sensor;

    > Airports & Harbors
    > Billboard illumination
    > Large recreational sports facilities
    > Industrial areas & Landscape buildings
    > Roundabouts and motorway junctions

    Model No.
    DR-FL050-CGXXDR-FL100-CGXXDR-FL150-CGXXDR-FL200-CGXXDR-FL300-CGXX
    System Watts/W
    50W100W150W200W
    300W
    System Efficiency/LPW
    120~125LPW
    Lumen Output/lm
    6.500±5%12.500±5%18.750±5%25.000±5%37.500±5%
    Rated Input Voltage/V
    AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
    LEDs Light Source
    SMD3030
    SDCM
    <5
    CCT/K
    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra
    >70Ra (>80Ra for Option)
    Power Factor
    >0.95
    THD
    <10%
    Beam Angle(Optional)
    Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
    UGR
    <25
    Surge Protection
    6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
    LED Driver
    Sosen,Meanwell ELG / HLG Optional
    IP Rating
    IP65
    Dimming(Optional)
    1-10V, DALI,PWM,Zigbee for Option
    Safety ProtectionOpen Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Sensor (Optional)Motion Sensor
    Protection Class
    ClassⅠ
    Finishing Color(Optional)
    Black RAL9017(Standard) / White RAL9016 Optional
    Material
    Aluminum+Toughened Glass
    Lifespan/hrs
    62.000 Hrs (Ta=30℃@L70)
    Operation Temp/℃
    40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃
    - 40°C to + 65°C(-40°F to 149°F)
    Switching Cycles100,000 Times
    Certificate
    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

    Character/Power
    100W
    150W
    200W
    240W
    300W
    A / mm
    389
    389
    437
    493
    582
    B / mm
    297
    297
    346
    379
    444
    C / mm
    57
    57
    57
    57
    60















    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-FL050-CGXX
    3.6
    355*350*165
    4.5
    1PCS/CTN
    DR-FL100-CGXX
    3.8
    355*350*165
    4.7
    1PCS/CTN
    DR-FL150-CGXX
    4.5
    415*410*175
    5.8
    1PCS/CTN
    DR-FL200-CGXX
    5.7
    475*470*195
    7.3
    1PCS/CTN
    DR-FL300-CGXX
    9.3
    475*470*195
    11.5
    1PCS/CTN






    Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle

    Q1: What is the Lead time?

    RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.


    Q2: Can you do DIAlux Simulation?
    RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

    Q3: Do you offer mounting accessories?

    RE: Yes, please contact us for details.


    Q4: IP Rating?
    RE: IP66.
    Q5: Is there cheap shipping cost to import to our country?
    RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
    orders,we suggest via air to airport plus our ship partner send to your door.
    Q6: Do you offer OEM or ODM?
    RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
    1. We can provide you with our present products with your own label;
    2. We can modify our products as your request;
    3. We can even develop totally new products based on your design;

    Q7:Can we get support if we have our own market position?
    RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
