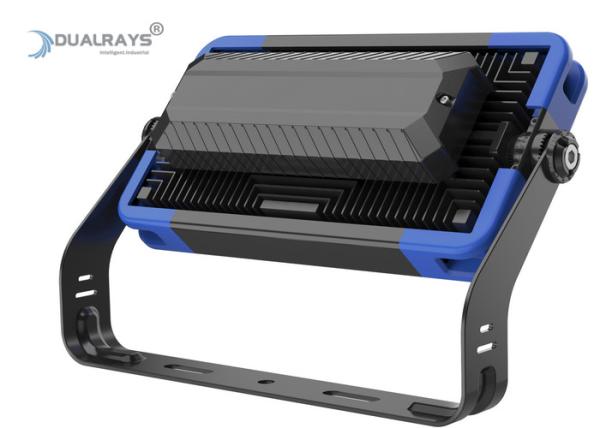

Dualrays F5 Series 250W Die Casting with Good Heat Dissipation Outdoor Stadium Lighting Modular Led Flood Light IP66

Dualrays F5 Series 250W LED Sport Ground Floodlight--Data sheet

Item No.	DR-FL250-EG2	Warranty	5 years
Input Voltage	AC100-277V 50/60HZ	CRI	>80
Power	250W	IP Ranking	IP66
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
Driving Brand	Meanwell/Sosen	Material	AL+PMMA
CCT	2700-6500K	Light Source	SMD3030
Beam Angle	25°/45º/60°/90º	LED Efficiency	150LPW

Dualrays F5 Series 250W LED Sports Ground Floodlights--Features:

* Multi-optional optical lens( 10°/25°/45°/60°/90°) especially for sport lighting;

* Cold forging high thermal conductivity 1070 aluminum optimal,good mechanical strength and heat dissipation, surface anti-corrosion coating processing, high anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment.

* High quality Meanwell/Sosen power supply, AC100V~277V,50/60Hz input voltage,constant voltage or constant current output, quick responds,no flicker, lightning protection, PFC function available.

* Pure copper air breather,good balance of air pressure inside and outside,water mist cleared at the same time;sustainable and durable;

* CE,RoHS listed,TUV/GS pending,LM79/LM80 available,5 years guarantee.

Dualrays F5 Series 250W LED Sports Ground Floodlights--Options:

> Driver: ELG/HLG(Retangle),Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> ±90° adjustable European bracket;

> Installation:Ground Mounting, Wall Mounting, Ceiling Mounting,pipe mounting;

> Customized supported for special projects;

> Advertising, Billboard lighting

> Building exterior lighting

> Warehouse, Factory, stair corridors lighting

> Large and small parking, Square, Stadium lighting etc

> Bridges and public places, as well as other industrial and commercial lighting

> Gardens lighting
> Football court,tennis court ect sport lighting area

> Suitable for wet locations

Model No.	DR-FL250-EGXX	DR-FL500-EGXX	DR-FL750-EGXX	DR-FL1000-EGXX	DR-FL1250-EGXX	DR-FL1500-EGXX
System Watts/W	250W	500W	750W	1000W	1250W	1500W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	40.000±5%	80.000±5%	120.000±5%	160.000±5%	200.000±5%	240.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030 / SMD5050 Optional
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 25°/55°/90°/120°,Asymmetrical 80*145°/45*157°/105*157°/160*160° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	SOSEN / Meanwell ELG Optional
IP Rating	IP66
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	720,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
