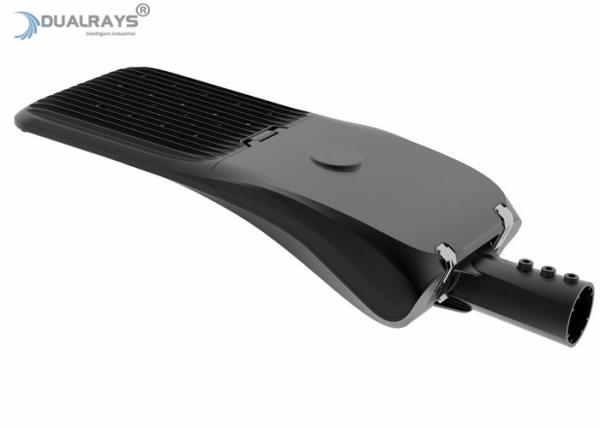

Best Price IK10 Corrosion Resistant LED Outside Security Lights
IP66 10KV LED Exterior Floodlights 120W
Outdoor LED Street ights Production details
* Rugged die-cast aluminum housing with corrosion resistant
hardware, super durable powder coating finish withstand extreme
climate changes without cracking or peeling;
* Dual-hoop mounting system fitted to 40-60mm (O.D.) mast-arms
accommodates safety and stability. Capable of being adjusted the
degree of ±10°(30W/60W) or ±15°(>60W);
* Processional optics design,Type III Medium(90°x140°),Type III
Short 90°x120°,Type V 120°,Type II 80°x135° for option;
* Top brand conponents,NICHINA LEDs light source,Meanwell
driver,durable;
* Modular design optimizes construction and assembly, allows for
easy maintenance, upgrade and SKD purchasing for local assembly;
* Tool-less access to the down-opening driver door makes easy
maintenance and operation;
* Multi beam angle for different occassions;
* Intelligent dimming control available,photocell controller is
available;
* Maintenance Free,IP66 protection,IK10 vibration grade;
* 10KV/20KV SPD for option;
* LM-79/80 reports available;
* CE,RoHS listed,5 years’ warranty.
Why choosing DUALRAYS:
* Professional team: >10 years experience, own factory, >10 engineers team,
powerful production capacity and QC management system, provide both
good quality product and service;
* Reliable brand: Built up stable and long-term cooperation with Europe customers,
got high prise and trust, and have warehouse in Netherlands for
better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance,
height, width, etc, our engineer team will do simulation according
to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading
products.
2020 Top sae Heat Dissipation Cobra Led Street Light IK10 Vibration
Grade 180W 10KV / 20KV SPD IP66 with motion sensor
Outdoor LED Street Lights Production sepecification:
Quick details:
> High brightness LUXEON SMD3030 LEDs,energy efficient - up to
150 lm/w;
> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,and
toughened glass protection;
> IP66 and IK10 for road lighting application;
> Driver and housing separated by spacers;
> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming
for option;
> 10KA SPD,20KA Meanwell SPD optional;
> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket
smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager)
with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.
Item No. | DR-ST120-DGXP | Housing color | Silver, Black, Grey etc |
Input Voltage | AC100-277V 50/60HZ | CRI | >80Ra(>70Ra for option) |
Power | 120W | IP Rating | IP66 |
Working Temp | -40 to +50℃ | IK Rating | IK10 |
Luminous Flux | 16,800lm | Material | AL+PMMA |
LED QTY | 144PCS | Light Source | SMD2835 |
Beam Angle | 60*120º/75*135° | LED Efficiency | 150LPW |
CCT | 2700-6500K | Certificate | CE, RoHS, |
Dimension | 950(L)*455(W)*125(D)mm | Warranty | 5 years |
UGR | <25 | Driving Brand | Meanwell/Sosen |
30W/60W Version
90W,120W/150W/180W Version
Zigbee Wireless Intelligent Control Operator Interface
We are proud to provide innovative designs,affordable LED
luminaires,high-touch service, excellent customer experience for
the leading distributor,wholesaler,and contractor from Western
Europe and Oceania.
In addition,we can provide our customers value added service with
Dialux software for lighting design projects free of charge.
(Partnership)
Dualrays adheres to independent innovation, Dualraysers try to
build a world well-known LED industrial Lighting Brand.
(Customer Portfolio)
Dualrays is practicing the enterprise management principle “Perfect
or Nothing”.
Thank you for your using Dualrays LED luminaires, we regards
quality first as our marketing philosophy from the design and
package of all our
products,we here declare that all of our products are tested by
professionals and obey strict quality standards,we have
professional after-sale
service team to follow our customers,we promise that when you find
any quality problems caused by the products quality itself within
its
guarantee period,you can contact us freely. When confirmed by the
QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co.,
LIMITED. will serve you with heart and soul!
Packaging Information
