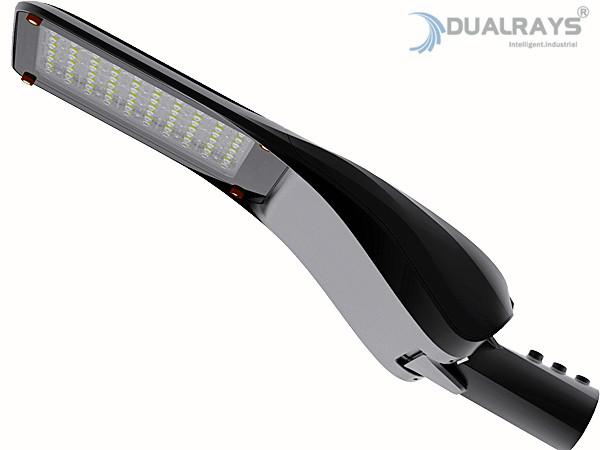

Dualrays S4 Series 180W High Power Intelligent LED Street Light IP66 140lmW 5 Years Warranty

Dualrays S4 Series 180W High Power Outdoor LED Street Light-- Data Sheet

Model No.	DR-ST180-DGX
Rated Power/W	180W
Systen Efficiency/LPW	150LPW
Material	Aluminum+PC+Toughened Glass
Life Span/hrs	>50000
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃
Pipe Diameter	ø60mm
Certificate	CE,ROHS,TUV/GS,LM79,LM80

Dualrays S4 Series 180W High Power Outdoor LED Street Light--Details:

> Excellent heat dissipation with Die-casting Al ;

> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;

> IP66 and IK10 for outfoor street lighting application;

> Power factor>95%;

> L80/B10 @ 50.000h;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> 5 years warranty,7 or 10 years warranty negotiated;

Dualrays S4 Series 180W High Power Outdoor LED Street Light--Options:

> Driver: Meanwell ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> Black RAL9017/ White RAL9016

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface

DALI Device


DALI Intelligent Control Diagram


DALI Intelligent Control Operator Interface

Packaging Information

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.

Q9: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q10: What is the CRI?

RE: Ra>70, Ra>80 optional.

Q11: IP Rating?

RE: IP66.

Q12: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q13: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q14: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q15: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q16:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
