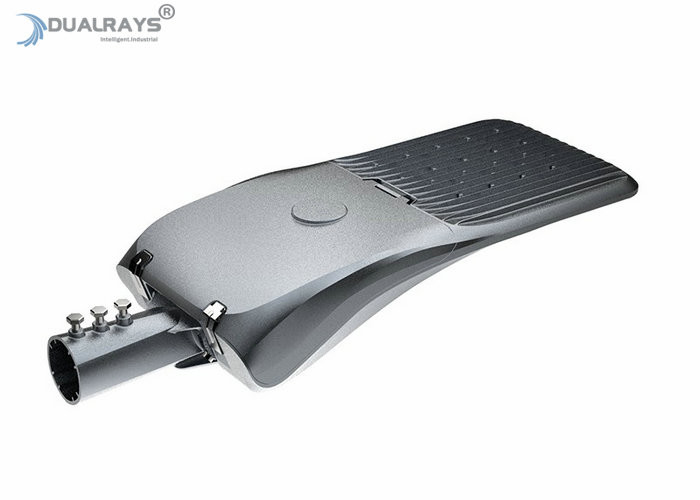

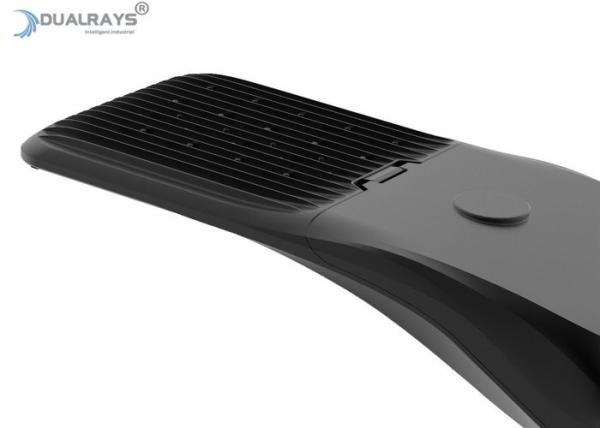

2020 professional manufacture Outdoor LED Street Lights IP66 210W With Meanwell Brand LEDs for highway display

Production advantage:

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Item	Symbol	Description
Model No	/	DR-ST030-DG1	DR-ST060-DG1	DR-ST090-DG1	DR-ST120-DG1	DR-ST150-DG1	DR-ST180-DG1
Rated Power	W	30	60	90	120	150	180
LEDs Typ/Qty	SMD 3030	96	96	512	640	640	640
Luminous Flux	LM	4,200±5%	8,400±5%	12,600±5%	16,800±5%	21,000±5%	25,200±5%
Efficiency	LPW	140	140	140	140	140	140
Color Temperature	CCT/K	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	/	1-10VDC /PWM / Resistance
Protections	/	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	/	Grade A
Color Index	Ra	>70Ra/>80Ra optional
Beam Angle	Degree	120
IP/Rating	/	IP66
AC Input Vol	V	AC95~277V 50/60Hz
Optics	/	Type I /Type III
Power Factor	PF	PF>0.95
Starting Time	s	<0.1
Lumen Maintenance @ 6000 hrs	Hours	>95%
Switching Cycle before Failure	Times	100,000
Life Span	Hours	50,000
Warranty	Years	5 years

30W/60W Version

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface

DALI Device


DALI Intelligent Control Diagram

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Packaging Information
