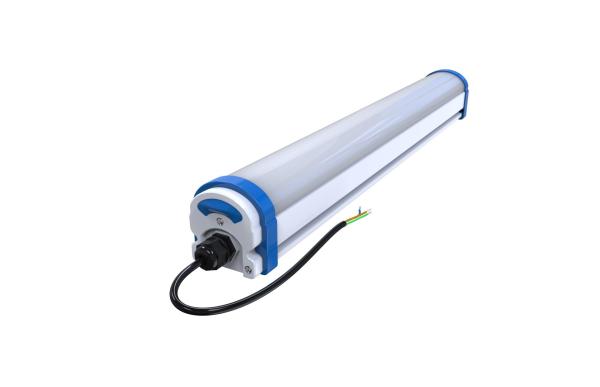

    Dualrays D2 Series 40W 4FT Full Plastic Housing LED Tri Proof Lamp 160LmW 5 Years Warranty

    Ask Lasest Price
    Brand Name : Dualrays Optoelectronics
    Model Number : DR-TPL040-BG41
    Certification : CE,RoHS,TUV/GS,LM79,LM80
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 100000PCS/Month
    Delivery Time : 5-15 business days
    • Product Details
    • Company Profile

    Dualrays D2 Series 40W 4FT Full Plastic Housing LED Tri Proof Lamp 160LmW 5 Years Warranty

    Dualrays D2 Series 40W 4FT Full Plastic Housing LED Tri Proof Lamp 160LmW 5 Years Warranty

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

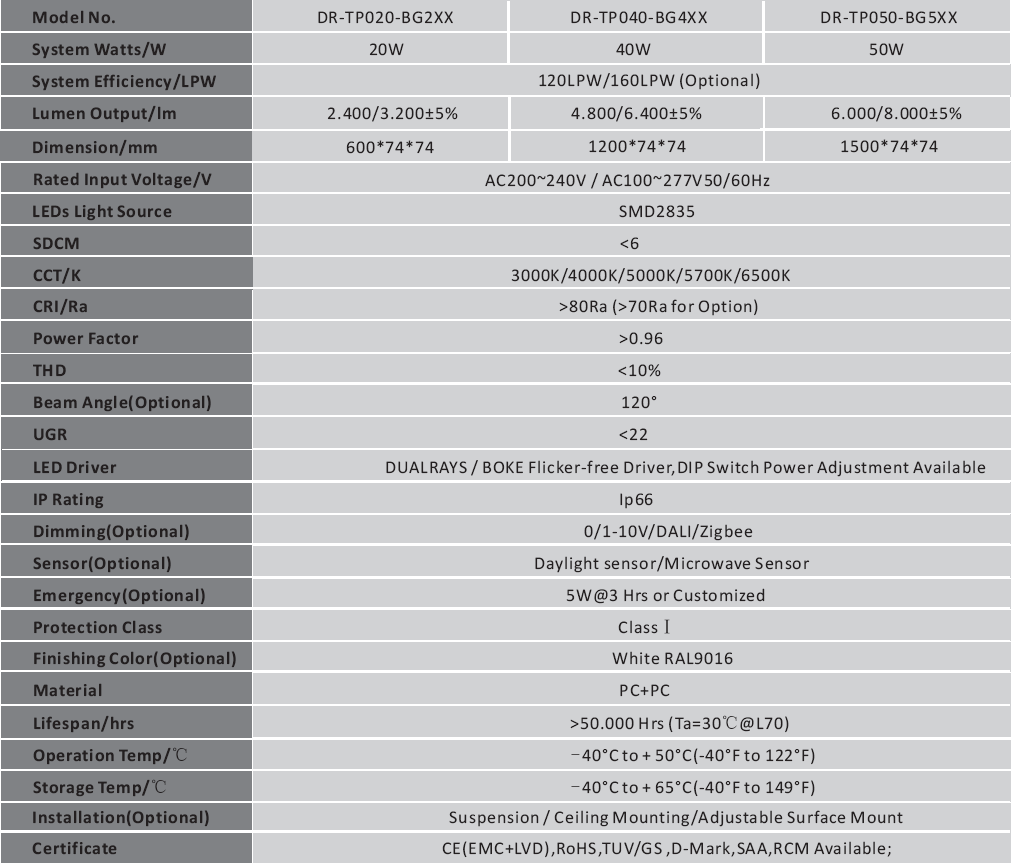

    Dualrays D2 Series 40W LED Tri Proof Light--Detailed Product Description

    Model No.:D2 SeriesBeam Angle:120°
    Power:20WProtection:IP66,IK10
    LEDs Typ/QtySMD2835 273pcsSwitching Cycle before Failure100,000
    Warranty:5 YearsSensor(Optional):Daylight Sensor/ Microwave Sensor
    Dualrays D2 Series 40W LED Tri Proof Light--Features
    > Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
    > 1-10V dimming flicker-free driver;
    > Single or Double wiring;
    > IP66 and IK10 for all industrial areas of application;
    > Eco full plastic light design,save your cost and freight;
    > No UV or IR and completely mercury free;
    > L80/B10 @ 50.000h;
    > Sensor control avaliable;
    > No toxic heavy metals, VOC, or mercury were used in the design;
    > 5 years warranty;

    Dualrays D2 Series 40W LED Tri Proof Light--Options:
    > Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
    > Suspended/Surface mounted/Adjustable installation for option.
    > Single or double wiring and connection.
    > Customized supported for special projects.
    > Sensor: Daylight Sensor/ Microwave Sensor.
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    * Replacement for fluorescent NCF
    * Workshops and warehouse
    * Garage and car parks
    * Sport facility
    * Corridor/Gallery/Corridor
    * Outdoor & Indoor Locations

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    Character/Length
    2ft
    4ft
    5ft
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    A
    600mm
    1200mm
    1500mm
    B
    74mm
    74mm
    74mm
    C
    74m
    74mm
    74mm


    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    (I) Emergency Function

    Model No.
    Emergency Time (Hours)
    Emergency Power (W)
    Battery Parameters
    DR-TPL020-BG21
    3/2/1 hours for option
    10W
    7.4V/4400/3000/1500mAh Lithium Battery
    DR-TPL040-BG41
    3/2/1 hours for option
    10W
    11.1V/6000/4000/2000mAh Lithium Battery
    DR-TPL050-BG51
    3/2/1 hours for option
    10W
    11.1V/8800/6000/3000mAh Lithium Battery


    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    DALI Device
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    DALI Intelligent Control Diagram
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot 5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot


    DALI Intelligent Control Operator Interface
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

    5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
